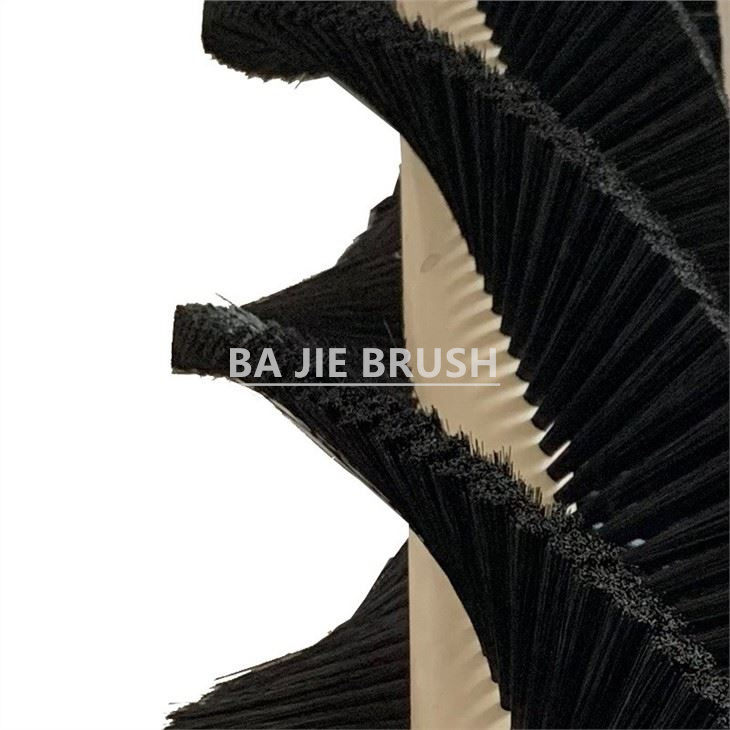

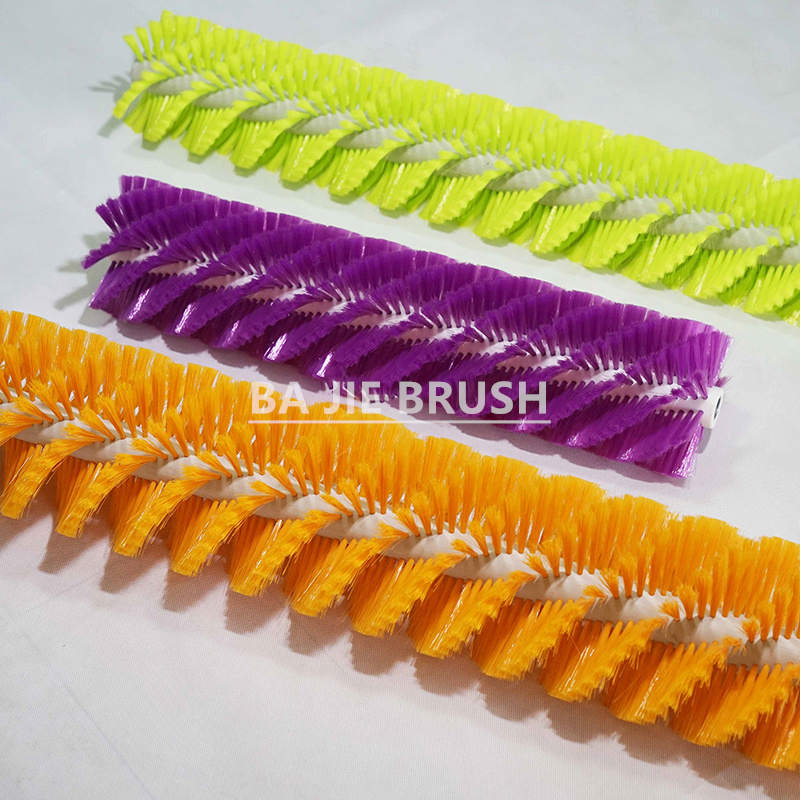

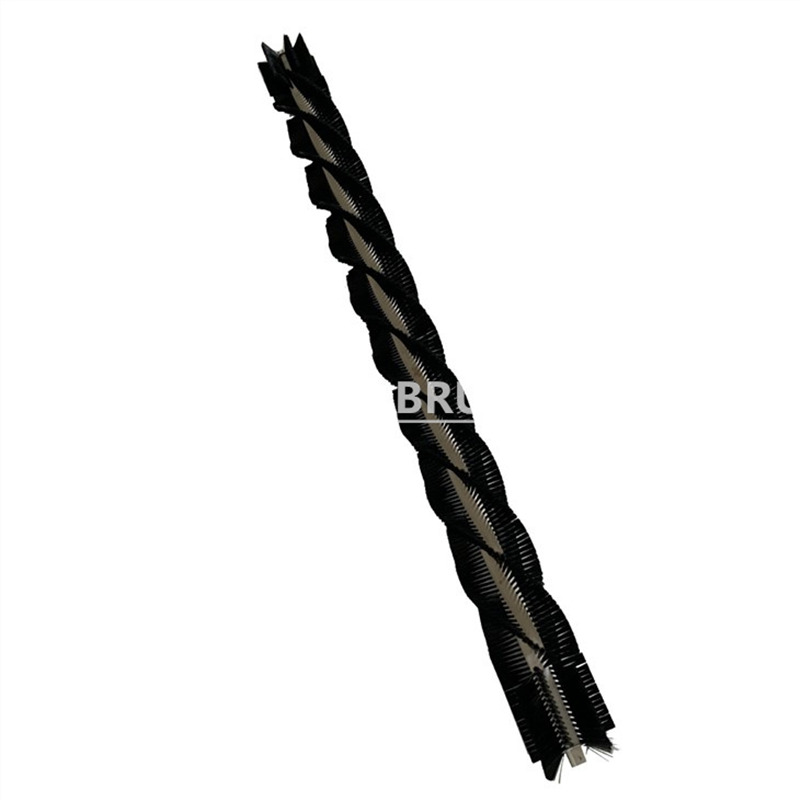

Spiral Pattern Solar Panels Cleaning Cylindrical Roller Brush can be customized to your requirements, and it's made for cleaning solar panels.
Bristle Material :
PA6Core Material :
Plastic Tube With Aluminum TubeBristle Color :
Black/Blue/Red/White/GreenFunction :
For Solar Panel Cleaning EquipmentFeature :
High QualityChina Spiral Pattern Solar Panels Cleaning Cylindrical Roller Brush Manufacturer
Introduction

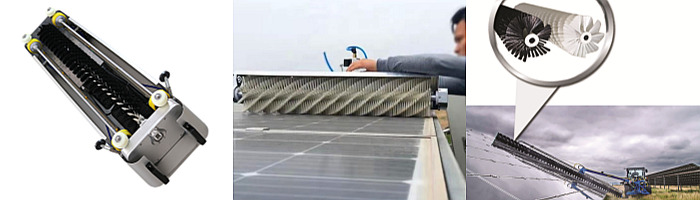

This brush made for solar panel maintenance systems. It is widely used on solar panels cleaning equipment and solar panels cleaning robots to remove dust, sand, pollen, and other debris from photovoltaic panels.
Regular cleaning is essential to maintain the efficiency of solar power systems. A high-quality solar panels cleaning brush can largely improve cleaning performance while protecting the glass surface of solar panels.

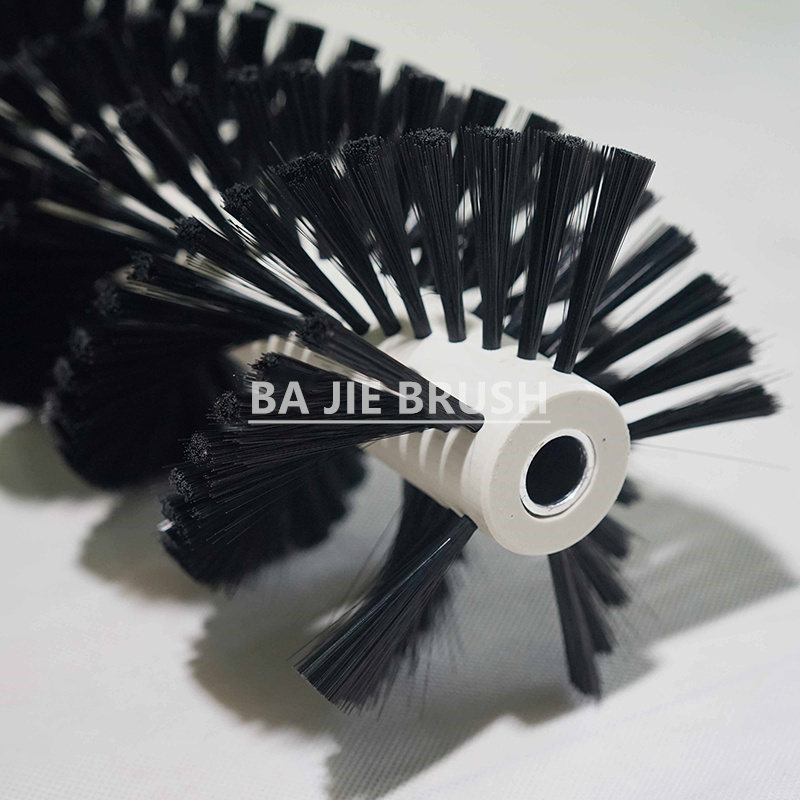

Structure of the Solar Panels Cleaning Roller Brush
The Solar panels cleaning roller brush is composed of three main components:
The aluminium pipe is inserted inside the plastic tube. The bristles are then stapled or tufted onto the outer surface of the plastic tube, creating a cylindrical roller brush.
Once installed on a solar panel cleaning machine or robot, the rotating solar panels cleaning cylindrical brush sweeps across the surface of the panels and removes dirt without damaging the glass.
Common Sizes and Specifications
Our solar panels cleaning brush are available in several standard sizes commonly used by solar cleaning equipment manufacturers.
Standard Lengths
Typical Dimensions
Bristle Specifications

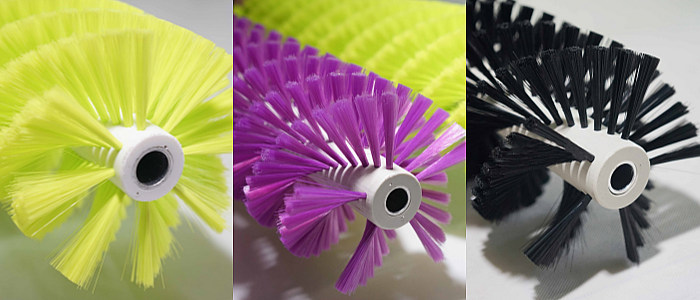

The bristles are arranged in a spiral pattern, which is the most widely used design for spiral solar panels cleaning brushes.
Common spiral patterns include:
Why Use a Spiral Bristle Pattern
The spiral arrangement of bristles is not only visually distinctive but also functionally important.
When the solar panels roller brush rotates, the spiral bristle pattern helps push dust and debris in one direction, allowing contaminants to be efficiently swept away from the solar panel surface.
This design provides several advantages:
Because of these advantages, the spiral bristle arrangement has become the most common design for solar panels cleaning brushes used in photovoltaic cleaning systems.

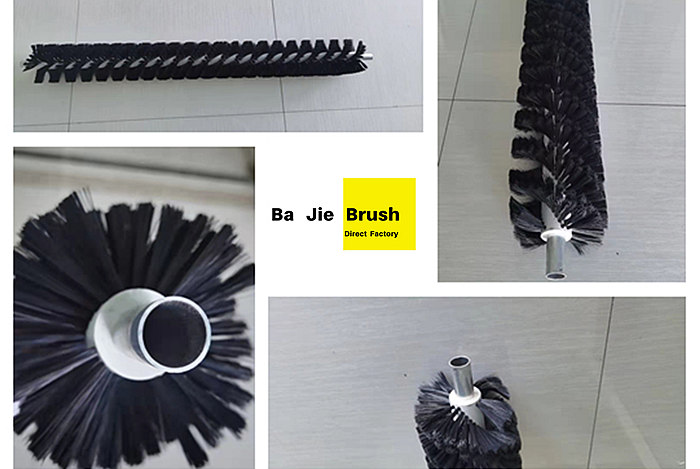

Why an Aluminium Pipe Is Used Inside
At first glance, inserting an aluminium pipe inside the plastic tube may seem unnecessary. However, this design is extremely important for long solar panel cleaning rollers.
A simple structure using only plastic tube plus bristles is easy to manufacture, but it lacks sufficient rigidity for long brushes. Solar panel cleaning rollers are often very long, sometimes exceeding two meters.
Without internal metal reinforcement, the plastic tube alone cannot maintain proper concentricity.
Poor concentricity can cause serious problems:
Over time, this vibration can significantly shorten the service life of the solar panel cleaning equipment and may even cause premature machine failure.
By adding a precision aluminium pipe inside the brush, the roller becomes much more stable, ensuring smooth rotation and consistent cleaning performance.
Why Choose Us
If you are looking for a dependable Solar Panels Cleaning Roller Brush manufacturer, we can provide both standard and custom solutions to match your equipment.
