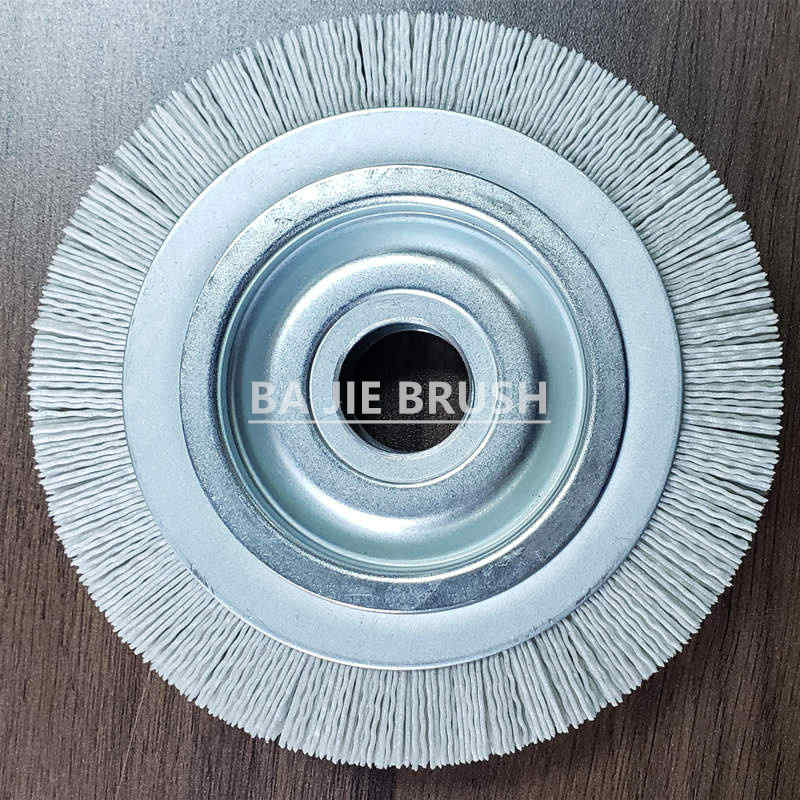

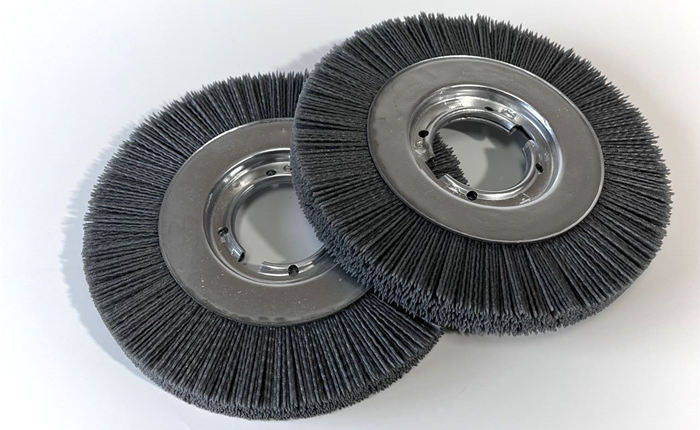

Abrasive Nylon Filament Deburring Wheel Brush

China Abrasive Nylon Filament Deburring Wheel Brush Manufacturer

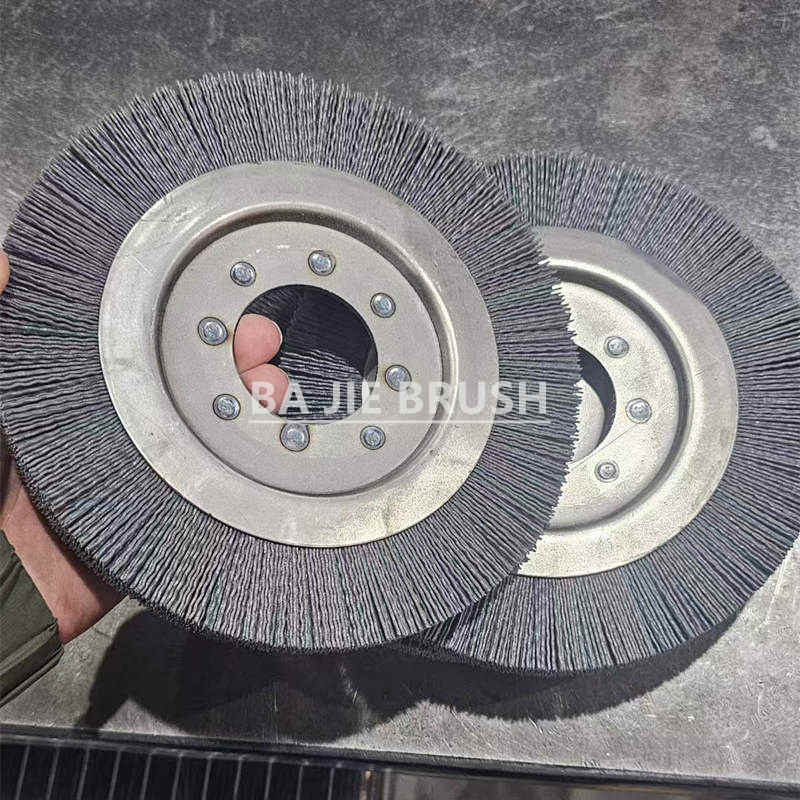

This wheel brush is installed on deburring machines, where it rotates at high speed to remove burrs, sharp edges, and surface imperfections. With the right abrasive filament and precise hub structure, this brush provides consistent finishing results without damaging the workpiece.

Abrasive nylon wheel brush consists of two components:

• Abrasive nylon filaments
• Metal hub

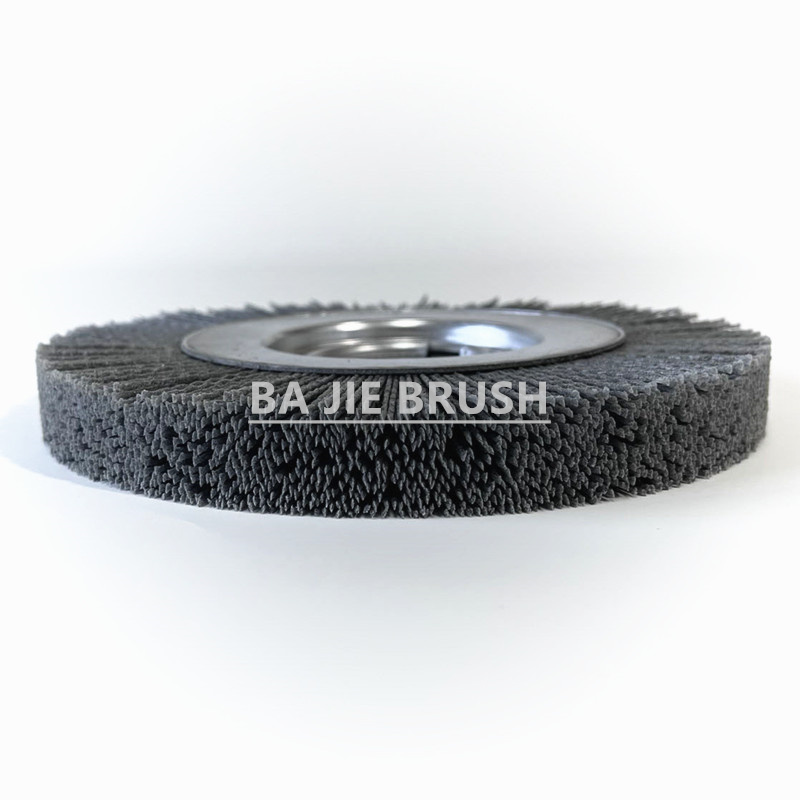

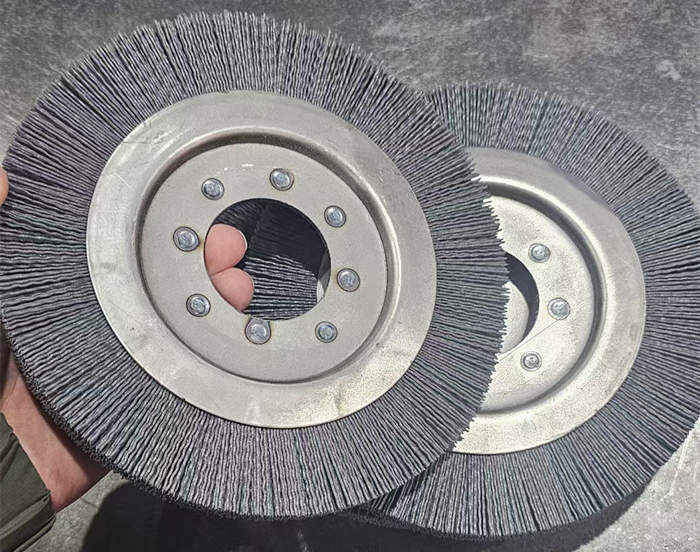

These two parts are assembled into a slim circular wheel shape, making the brush suitable for installation on deburring machines and automated finishing equipment.

When the brush rotates, the abrasive filaments contact the workpiece surface and gradually remove burrs, oxidation layers, and minor surface defects.

Abrasive Nylon Filament

The performance of this abrasive wheel brush largely depends on the quality and composition of the abrasive filament.

The filament is made from nylon mixed with abrasive particles. The nylon base material usually has three options:

• PA6
• PA610
• PA612

The abrasive particles embedded inside the nylon filament are typically:

• Silicon Carbide
• Aluminium Oxide

Different deburring tasks require different abrasive grit sizes. Common grit options include:

• 36#
• 46#
• 60#
• 80#
• 120#
• 180#
• 240#
• 320#
• 500#
• 800#
• 1000#

Metal Hub

The metal hub is located at the center of the deburring wheel brush. It plays two important roles:

• Fixing the abrasive filaments securely
• Providing the mounting structure for the machine

The arbor hole or adapter shape can be customized to match different deburring machines. It can be made with keyways.

A strong metal hub ensures the brush can operate safely at high rotational speeds while maintaining stability.

• Multiple Abrasive Options

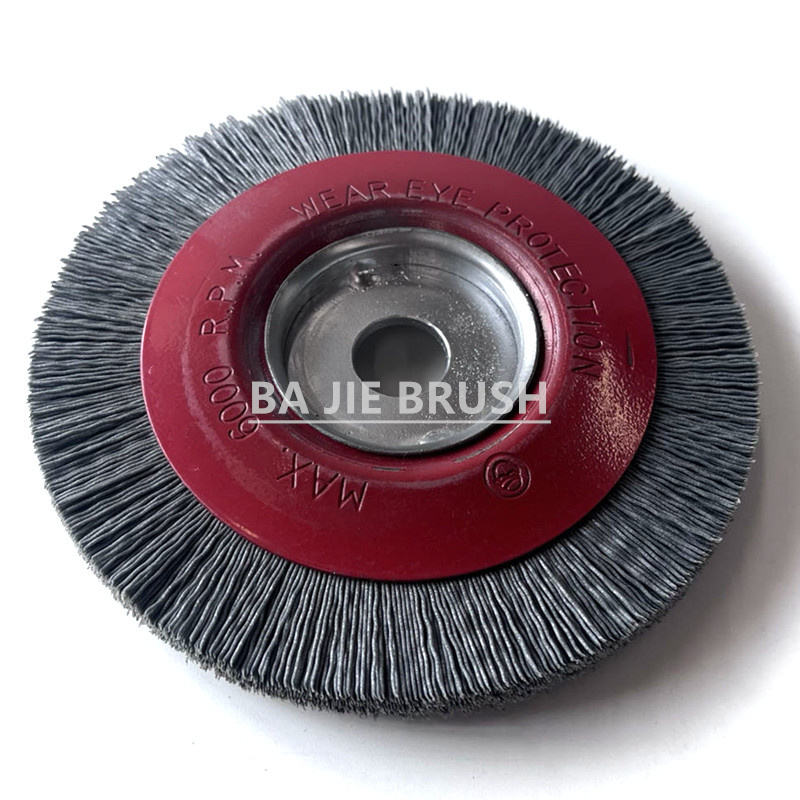

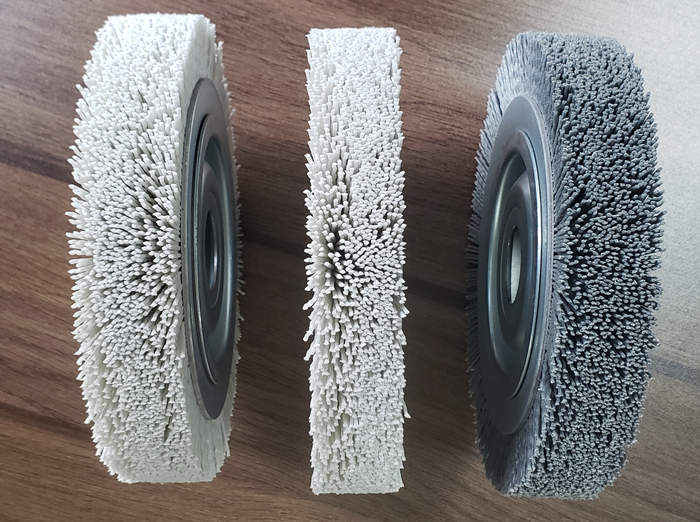

  Both silicon carbide wheel brushes and aluminium oxide wheel brushes are available.

• Customizable Dimensions

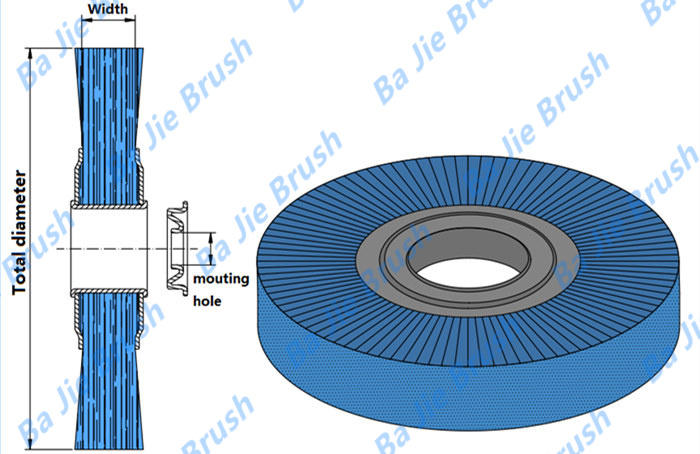

  Customizable parameters include: arbor hole size, face width, brush diameter.

• High Strength Metal Hub
  Allowing the abrasive wheel brush to operate at high rotational speeds while maintaining structural stability.

• Dynamic Balancing for High Precision
  Every abrasive filament wheel brush we produce undergoes dynamic balancing treatment. This ensures excellent concentricity and stable rotation, which is critical for high-speed deburring applications.
• Precise Arbor Hole Tolerance
  The arbor hole size is manufactured with high precision, with typical tolerance controlled within ±0.02 mm. We can also provide positive tolerance or negative tolerance according to customer requirements.
• High Quality Abrasive Filament
  We use abrasive nylon filaments from internationally recognized brands. These filaments offer superior wear resistance and consistent deburring performance, resulting in longer brush life and better finishing results.
• Advanced Automatic Production
  Our factory uses advanced fully automatic machines to produce wheel brushes.
