Aluminum Oxide Engine Cylinder Flexible Ball Hone Brush

Aluminum Oxide Engine Cylinder Flexible Ball Hone Brush

Aluminum oxide engine cylinder flexible ball hone brush is made from nylon bristles twisted on steel wire. Aluminum oxide abrasive materials are attached on top of each nylon bristles. It's an ideal solution to impart a smooth, oil-retaining hole.

  • Ball Material :

    Aluminum Oxide
  • Grit Size :

    60#/80#/120#/180#/240#/320#/400#/500#/600#/800#/1000#/1200#
  • Stem Material :

    Galvanized Steel
  • Function :

    Engine Cylinder Honing
  • Feature :

    Aluminum Oxide Honing Brush
Inquiry now

China Aluminum Oxide Engine Cylinder Flexible Ball Hone Brush Manufacturer

Introduction

Aluminum Oxide Ball Hone Brush is made for honing and polishing internal holes in various industrial and automotive applications. Also known as a ball hone or honing brush, this product consists of twisted wire stem and abrasive balls made of aluminum oxide particles that are densely packed onto flexible nylon bristles.

The bristles are arranged in a round pattern to ensure consistent contact with the surface, providing an even finish and smoothing rough edges. The brush is specifically designed for engine cylinder honing.

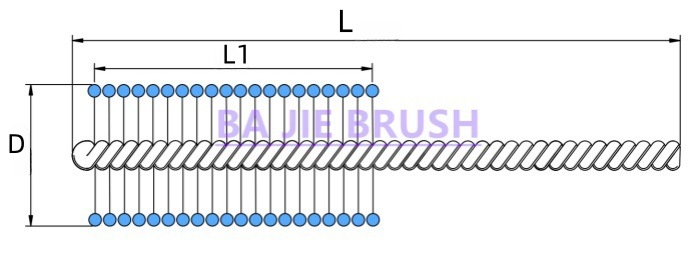

Part No.

D(mm)

Brush Diameter

L1(mm)

Working Diameter

Stem Diameter(mm)

L(mm)

Total Length

HB-01 3.2~8 20~60 1.5~3 150~200
HB-02 9~14 60 3~3.6 200
HB-03 15~20 60 3.6~4.1
HB-04 21~24 70 4.5
HB-05 25~27 70 5
HB-06 28~30 70
HB-07 31~33 70
HB-08 34~36 70 5.6
HB-09 37~40 70 6
HB-10 41~44 70
HB-11 45~48 70
HB-12 49~51 70
HB-13 52~55 70 6.5
HB-14 56~59 70
HB-15 60~63 70
HB-16 64~67 70
HB-17 68~71 70
HB-18 72~75 70
HB-19 76~79 70
HB-20 80~84 80 8 300
HB-21 85~88 80
HB-22 89~92 80
HB-23 93~96 80
HB-24 97~100 80
HB-25 101~105 80
HB-26 106~110 90 9 350
HB-27 111~120 90
HB-28 121~130 110 10.2 450
HB-29 131~140 110
HB-30 141~150 120
HB-31 151~160 120
HB-32 161~170 130
HB-33 171~180 130
HB-34 181~190 140
HB-35 191~200 140
HB-36 201~210 150 500
HB-37 211~220 150
HB-38 221~230 150
HB-39 231~240 150
HB-40 241~250 150
HB-41 251~260 150
HB-42 261~270 150
HB-43 271~More Wooden Core Wooden Core Wooden Core

Advantages

  • Durable and Long-Lasting
    Made with aluminum oxide particles, known for their exceptional hardness and resistance to wear, ensuring a long service life.
  • Highly Resistant to Wear
  • Various Use
    Ideal for both hard and soft surfaces, including engine cylinders, rods, pumps, and bores.
  • Uniform Finish
    Delivers an even surface finish with minimal effort.
  • Lubricant-Compatible
    Can be used with water-based or oil-based lubricants to enhance the honing proces.
  • High-Temperature Performance
    The high melting point of aluminum oxide makes it suitable for high-temperature applications, including engine and machinery maintenance.

Hone Tool

Application

The Aluminum Oxide Engine Cylinder Flexible Ball Hone Brush is a highly effective tool for many applications, including:

  • Engine Cylinder Honing
  • Bore Surface Treatment
  • Automotive Detailing
  • Rust and Corrosion Removal
  • General Polishing

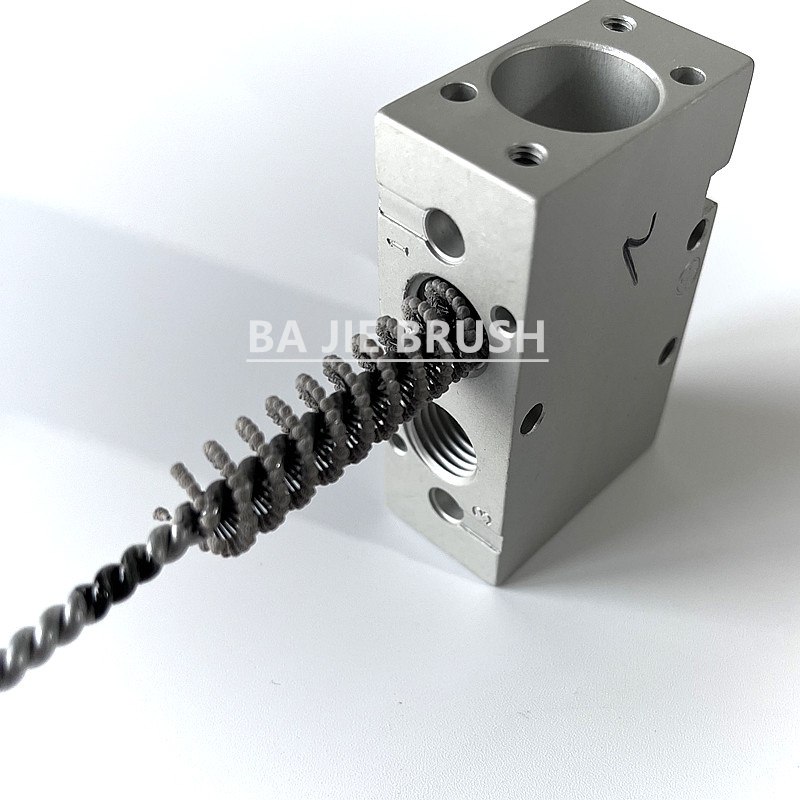

To use this honing brush tool, it should be securely attached to an electric drill. Gently press the brush against the surface and move it in a circular motion to remove any burrs, rough edges, or contaminants. After each use, thoroughly clean the brush to prevent clogging and ensure it remains effective for future tasks.

Why Choose Us

  • Comprehensive Product Range
    We offer a full selection of hone brushes in various materials and sizes, customized to meet your specific needs.
  • Factory-Direct Pricing
    As a direct manufacturer, we provide competitive pricing without the middleman.
  • Fast Production
    Our typical production lead time ranges from 7 to 15 days, ensuring timely delivery.
  • Superior Quality
    Dedicated quality control personnel meticulously inspect each batch of hone brushes to guarantee the highest standards.
  • Free Samples
    We offer free samples for you to evaluate the quality.
  • OEM & ODM Services
    We provide both OEM and ODM services according to your need.
