Name: Convoluted And Flat Wafer Ring Brush For Road Sweeper
Availability: InStock

Convoluted And Flat Wafer Ring Brush For Road Sweeper

This wafer ring brush is installed on road sweeper for removing dust, dirt, sand, debris, and snow from streets, highways, and parking areas. Thanks to its modular design and bristles materials, this type of brush is good at doing this work.

Bristle Material :
Polypropylene/Steel Wire/Mixed
Bristle Color :
Customized
Backing Material :
Galvanized Steel
Function :
Road and Snow Sweeping
Feature :
Ring Shape

Inquiry now

Product Details

China Convoluted And Flat Wafer Ring Brush For Road Sweeper Manufacturer

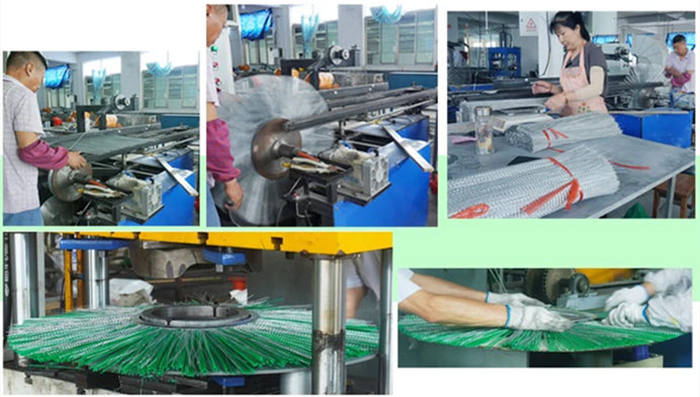

A wafer ring brush is mainly composed of two parts: a metal channel and bristles. During production, the bristles are inserted into the metal channel and then compressed using a stamping machine to form a circular ring shape. Each ring is called a wafer.

Multiple wafer rings are installed one by one on a rotating shaft. When the sweeper operates, the rotating brushes sweep debris and push it toward the collection system of the machine.

This structure makes wafer brushes one of the most practical and economical brush types used in road sweeping equipment.

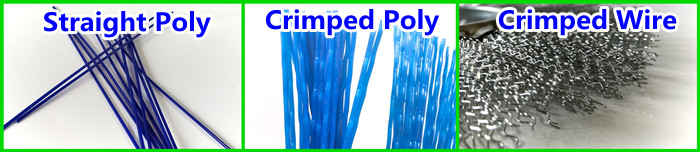

Bristle Material Options

Different road cleaning conditions require different brush materials. Wafer ring brushes usually have three bristle combinations:

Polypropylene Bristles (Flat Shape)
Polypropylene bristles are usually flat in shape. They are flexible, lightweight, and resistant to moisture and chemicals. Poly brushes are suitable for light-duty sweeping tasks.

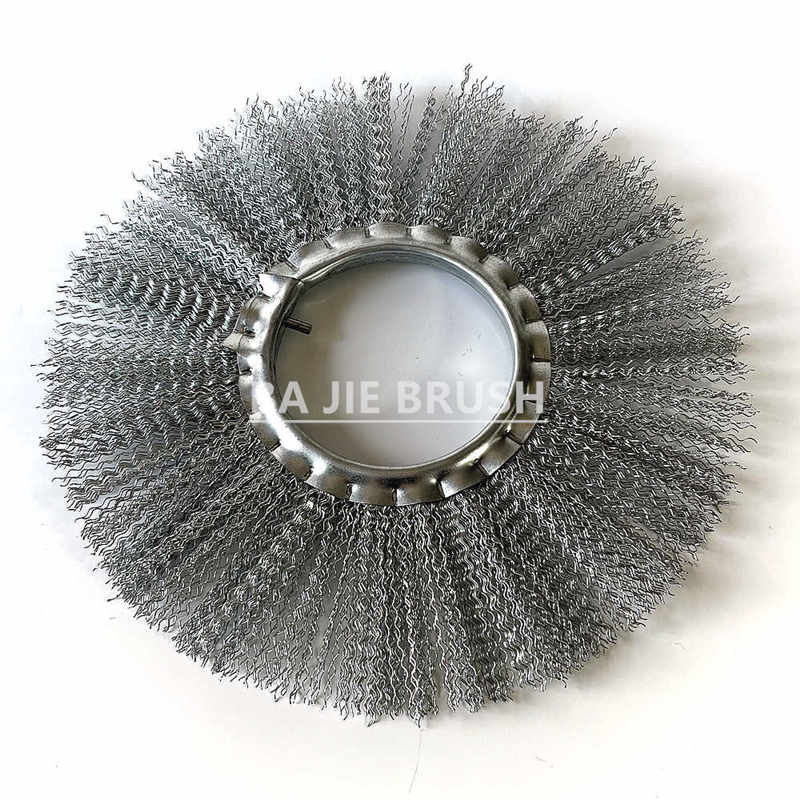

Crimped Steel Wire Bristles
Steel wire bristles have a crimped shape that provides stronger sweeping power. They are ideal for removing stubborn debris such as compacted dirt, gravel, and heavy road waste.
Polypropylene And Steel Wire Mixed Bristles
Mixed bristles combine polypropylene and steel wire in one brush. This combination offers a balance between flexibility and sweeping strength.

In terms of cleaning power, the ranking is:

Steel Wire > Mixed Bristles > Polypropylene

Types of Wafer Ring Brush

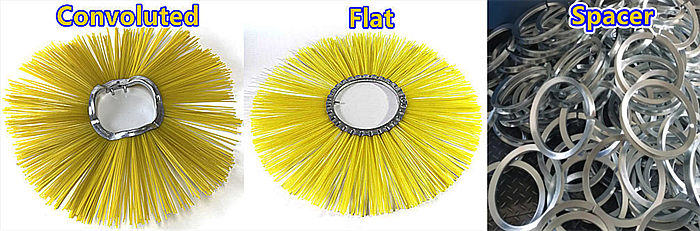

According to the structure of the metal channel, wafer brushes can be divided into two main types.

Flat Wafer Brush
Flat wafer brushes have a flat metal channel. When installing them on the sweeper shaft, metal spacers are required between each wafer to maintain proper spacing and brush density.

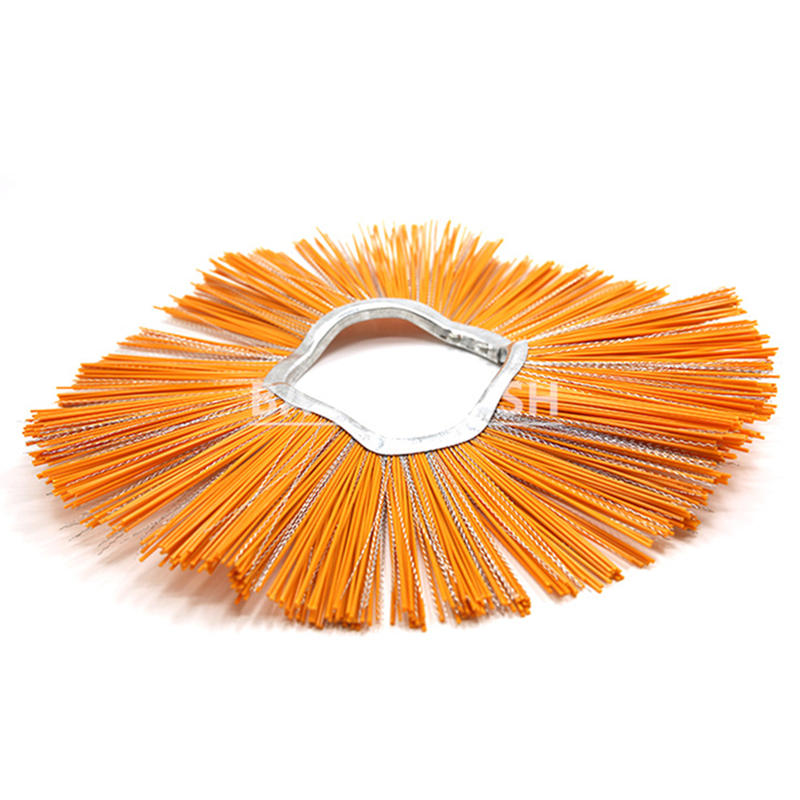

Convoluted Wafer Brush
Convoluted wafer brushes feature a wavy or convoluted metal channel design. This structure allows the wafers to interlock naturally during installation. Because of this design, no metal spacers are required, making installation faster and more convenient.

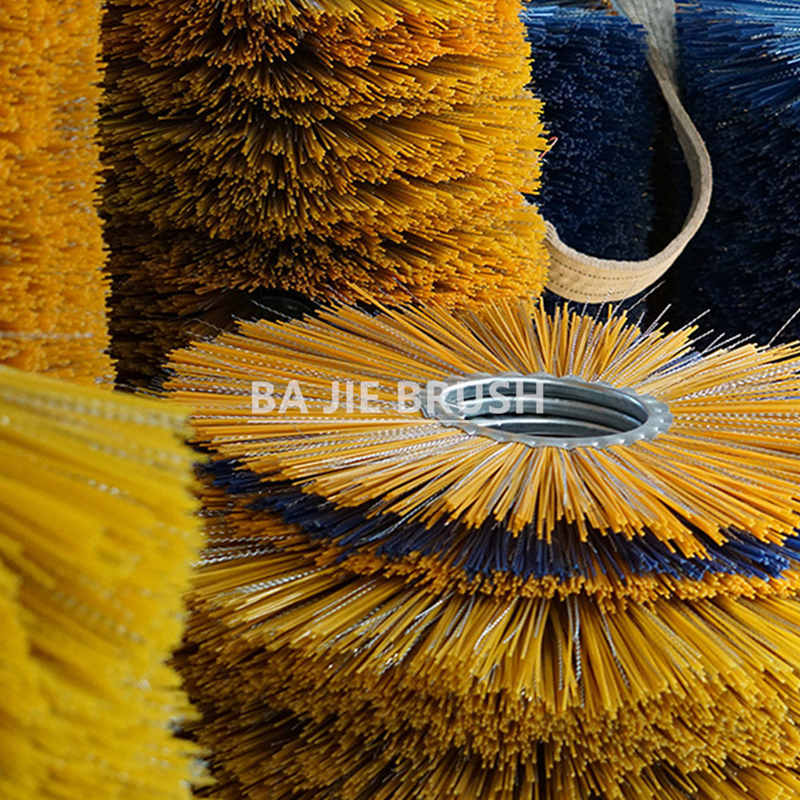

Snow Sweeping Ring Brushes

Key Features of Wafer Ring Brushes

Modular Design For Easy Installation

The brush is composed of individual wafers that are installed one by one on the shaft. This modular design makes installation, replacement, and maintenance quick and convenient.

Customizable Sizes

Wafer ring brushes can be customized to match different road sweeper models. The most commonly customized dimensions include:

Inner Diameter (ID)
Outer Diameter (OD)

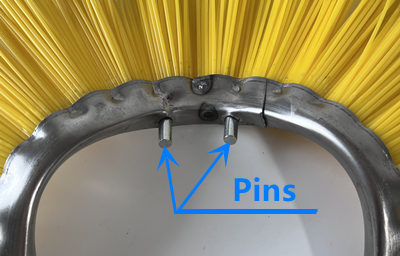

Positioning Pins For Secure Installation

The metal channel usually includes one or two positioning pins. These pins help secure the wafer brush on the shaft during installation, preventing rotation or movement during operation.

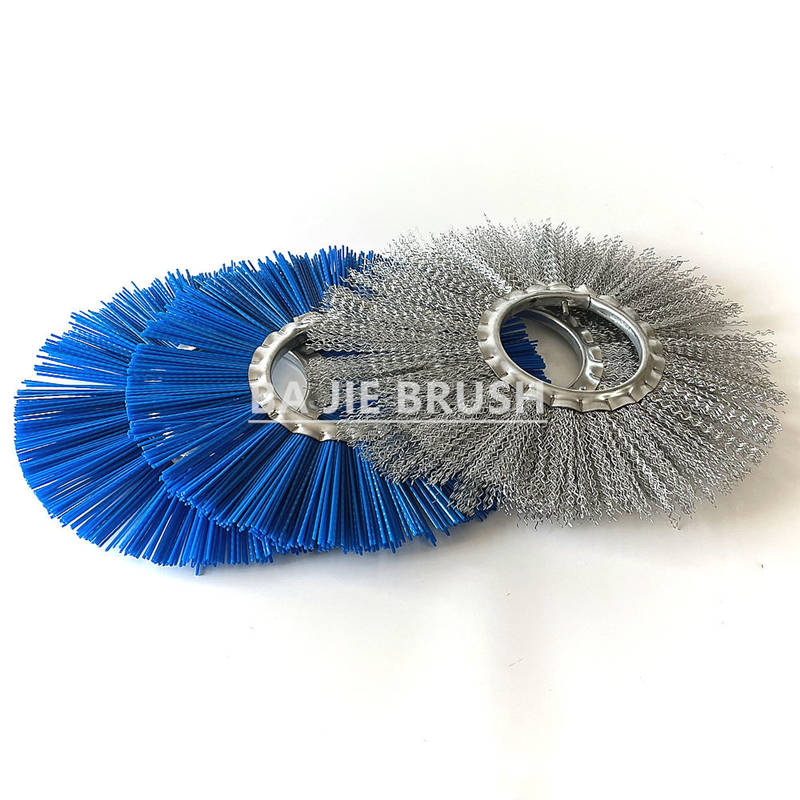

Applications of Wafer Ring Brushes

The primary application of wafer ring brushes is road sweeping. They are installed on road sweepers to clean streets, highways, airports, industrial areas, and parking lots.

For road cleaning tasks, steel wire wafer brushes or mixed bristle wafer brushes are usually recommended because they provide stronger sweeping performance.

Another well-known application is snow removal. In this case, polypropylene wafer brushes are recommended. Poly bristles used for snow sweeping are made from low-temperature resistant polypropylene, which maintains flexibility even in cold weather conditions.

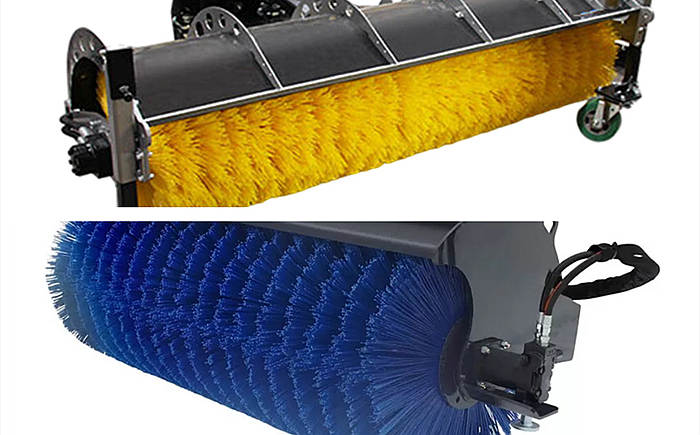

Snow Sweeper Brush
