Home Products Industrial Brushes

Toothed Timing Belt Brush With PU Cleats

Toothed Timing Belt Brush With PU Cleats

Toothed Timing Belt Brush With PU Cleats combines a timing belt with synthetic fiber, ensuring reliable cleaning performance. It can be mounted on various cleaning machines for both lateral and longitudinal cleaning applications.

  • Bristle Material :

    Nylon/Polypropylene/Horsehair/Tampico
  • Core Material :

    Toothed Belt
  • Bristle Color :

    White/Black/Red/Blue/Green
  • Function :

    Cleaning/Conveying/Supporting
  • Feature :

    Timing Belt Brush
Inquiry now

China Toothed Timing Belt Brush With PU Cleats Manufacturer

Introduction

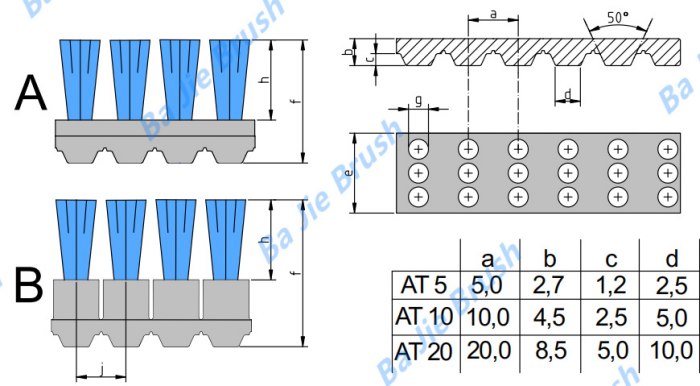

Our Timing Belt Brush consists of PU toothed belt and bristles, suitable for applications that demand vertical and horizontal cleaning. The brush is available in six standard belt profiles:

  • T5
  • T10
  • T20
  • AT5
  • AT10
  • AT20

The belt is manufactured from polyurethane (PU), which provides outstanding tensile strength, excellent wear resistance, and stable performance even at high speeds.

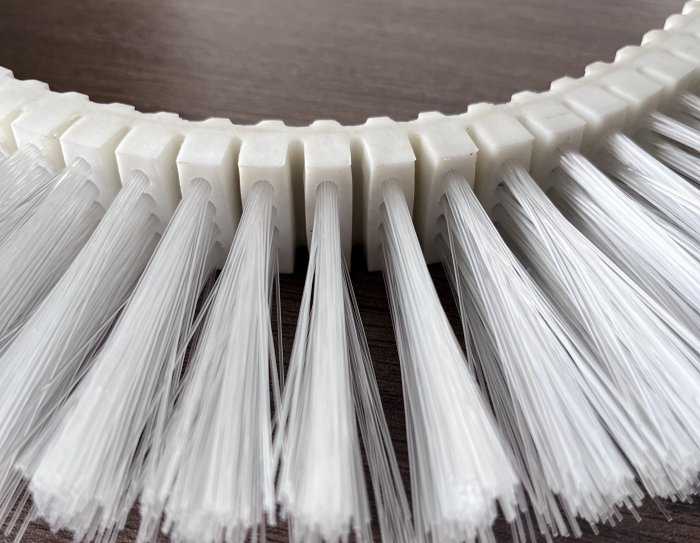

Unlike traditional belt brushes, this Belt Brush With PU Cleats features multiple cleats integrated into the belt surface, where the filaments are firmly tufted. The cleated design allows for secure bristle fixation and the ability to be mounted on smaller diameter pulleys.



Advantages

  • High Quality PU Timing Belt Material
    Manufactured from high-quality polyurethane with a hardness of approximately SHA 92, ensuring strong bristle retention and long service life.

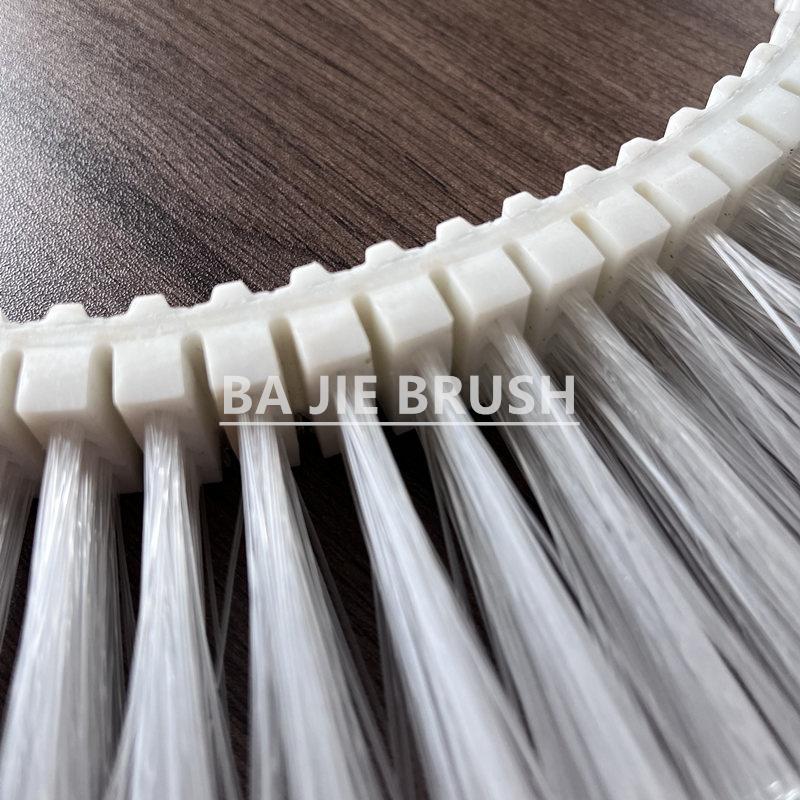

  • PU Cleats with Gaps
    The segmented cleats make the Endless Toothed Belt Brush more flexible and suitable for installation on compact pulleys.

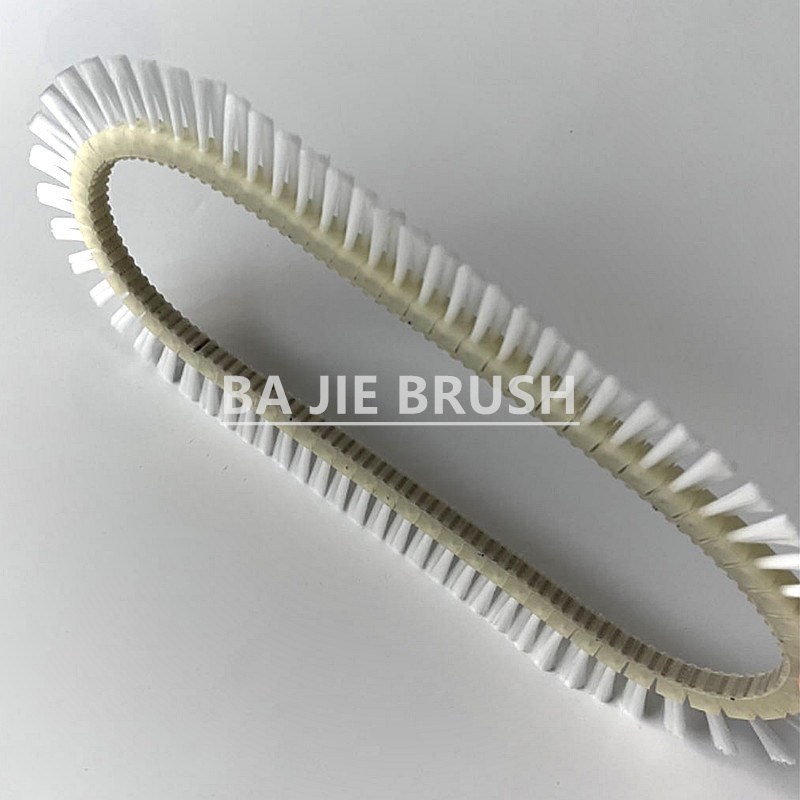

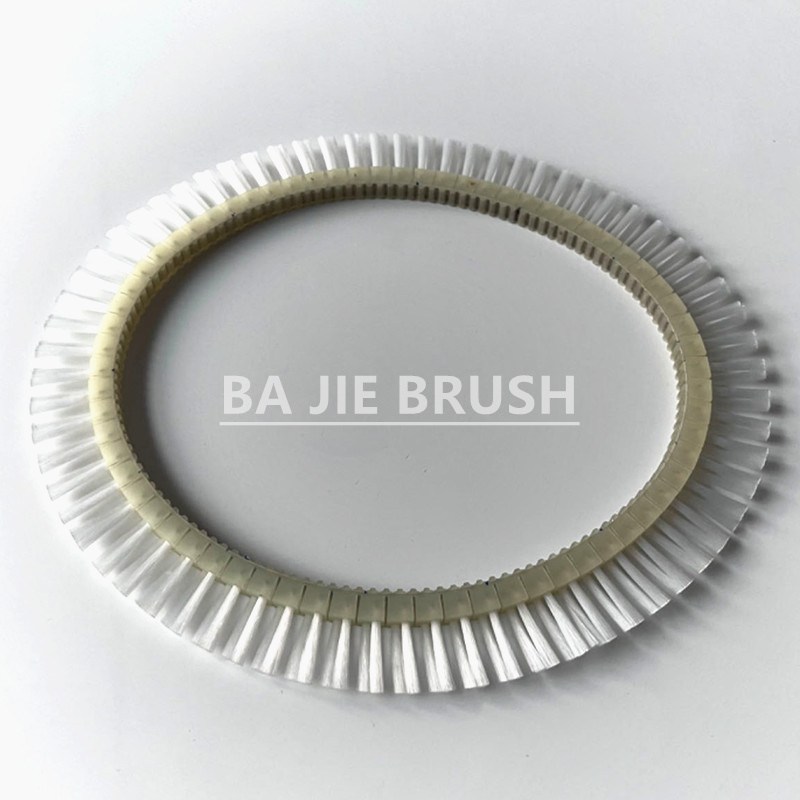

  • Endless Loop (Ring) Design
    Enables quick installation and stable rotation during operation.
  • Customizable Dimensions
    Belt width available up to 300mm, with length tailored to customer requirements.
  • High Temperature Resistance
    Performs reliably up to +80°C.
  • High-Speed Operation

Brush on timing belt

Application

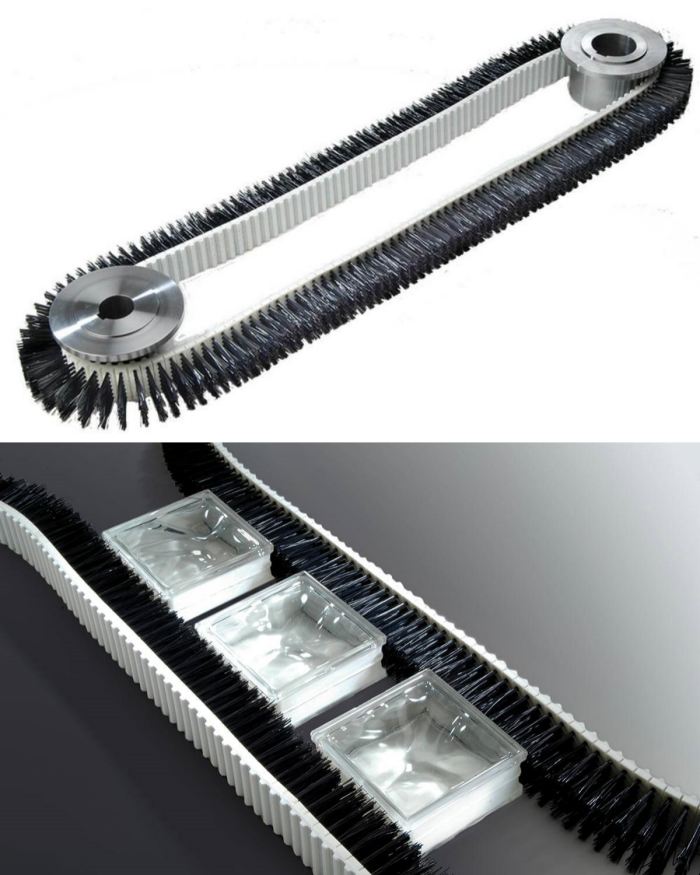

Our Toothed Timing Belt Brush With PU Cleats can be installed and rotated on standard toothed pulleys for many applications.

  • Conveying delicate products
  • Surface cleaning and dust removal
  • Washing and drying systems for packaging and food industries

Why Choose Us

  • High Hardness PU Belts (SHA 92)
    Bristles are firmly anchored, ensuring no filament loss during long-term use.
  • Factory-Direct Pricing
    Save costs by purchasing directly from our factory.
  • Fast Production & Delivery
    Supported by advanced belt brush production machinery and large stock of PU belts.
  • Extensive Experience
    With years of expertise in manufacturing Flexible Belt Brushes, we provide professional guidance and tailored solutions to meet your specific requirements.
