Name: Silicon Carbide Engine Cylinder Flexible Ball Honing Brush
Availability: InStock

Silicon Carbide Engine Cylinder Flexible Ball Honing Brush

The Silicon Carbide Engine Cylinder Flexible Ball Honing Brush is a flex hone tool, which is suitable for honing inside wall of engine cylinders

Ball Material :
Silicon Carbide
Grit Size :
60#/80#/120#/180#/240#/320#/400#/500#/600#/800#/1000#/1200#
Stem Material :
Galvanized Steel
Function :
Cylinder Bore Honing
Feature :
SIC Honing Brush

Inquiry now

Product Details

China Silicon Carbide Engine Cylinder Flexible Ball Honing Brush Manufacturer

Introduction

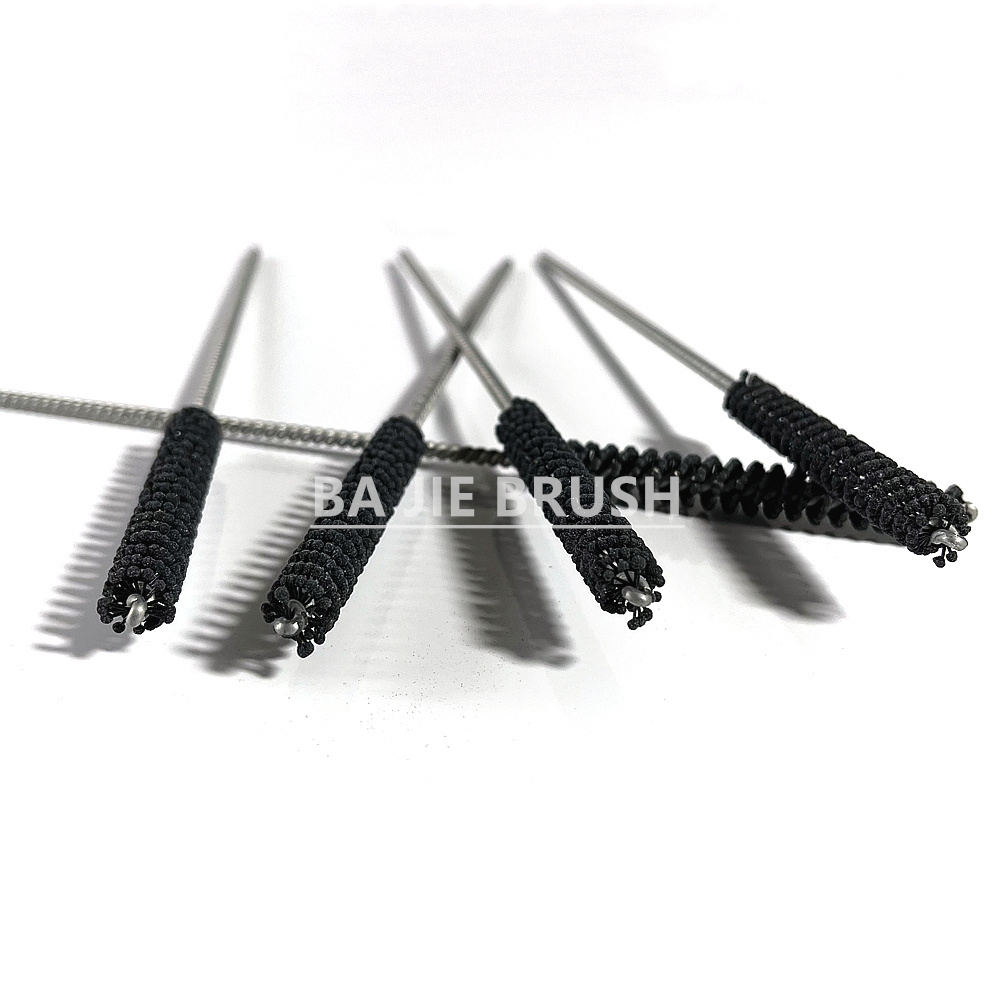

Silicon Carbide Honing Brush is a highly efficient surface finishing tool, made for engine cylinder honing and precision deburring. This Flexible Honing Brush is constructed by twisting high-strength nylon filaments between two steel wires, with each filament tip embedded with ball-shaped Silicon Carbide abrasive grains. The elasticity of the nylon filaments ensures the brush automatically self-centers inside the cylinder during operation, maintaining consistent pressure and uniform contact.

This Silicon Carbide Engine Hone is ideal for applications such as cylinder wall deglazing, cross-hole deburring, and plateau finishing, providing a clean, uniform, and smooth surface finish. It is perfectly suited for materials including cast iron, aluminum, and non-ferrous metals, making it a versatile choice for engine rebuilding, automotive repair, and precision manufacturing industries.

Part No.	D(mm) Brush Diameter	L1(mm) Working Diameter	Stem Diameter(mm)	L(mm) Total Length
HB-01	3.2~8	20~60	1.5~3	150~200
HB-02	9~14	60	3~3.6	200
HB-03	15~20	60	3.6~4.1
HB-04	21~24	70	4.5
HB-05	25~27	70	5
HB-06	28~30	70
HB-07	31~33	70
HB-08	34~36	70	5.6
HB-09	37~40	70	6
HB-10	41~44	70
HB-11	45~48	70
HB-12	49~51	70
HB-13	52~55	70	6.5
HB-14	56~59	70
HB-15	60~63	70
HB-16	64~67	70
HB-17	68~71	70
HB-18	72~75	70
HB-19	76~79	70
HB-20	80~84	80	8	300
HB-21	85~88	80
HB-22	89~92	80
HB-23	93~96	80
HB-24	97~100	80
HB-25	101~105	80
HB-26	106~110	90	9	350
HB-27	111~120	90	9	350
HB-28	121~130	110	10.2	450
HB-29	131~140	110
HB-30	141~150	120
HB-31	151~160	120
HB-32	161~170	130
HB-33	171~180	130
HB-34	181~190	140
HB-35	191~200	140
HB-36	201~210	150		500
HB-37	211~220	150
HB-38	221~230	150
HB-39	231~240	150
HB-40	241~250	150
HB-41	251~260	150
HB-42	261~270	150
HB-43	271~More	Wooden Core	Wooden Core	Wooden Core

Advantages

Custom Grit Sizes: Available from 60# to 1200# to meet various honing and finishing requirements.
Self-Centering Function: The flexible nylon filaments adapt to the bore shape, ensuring even pressure and uniform results.
Smooth Surface Finish: Achieves high-quality plateau finishes and removes sharp edges or burrs efficiently.

Flex Hone Tool

Why Choose Us

Direct Factory Supply
As a professional manufacturer, we guarantee consistent quality and competitive factory pricing without intermediaries.
Customization Available
Size, grit, and material can be fully customized to fit your specific honing requirements.
Strict Quality Control
Each Silicon Carbide Hone Brush undergoes performance and durability testing before shipment, ensuring reliability.
High Production Capacity
With multiple honing brush production lines, we can meet both bulk and urgent orders on time.
Reliable After-Sales Service
We stand behind our products with a 100% refund policy for any quality issues, ensuring a worry-free experience.

Silicon Carbide Honing Tool
