Quick Snap Multizack Modular Segment Roller Brush

Quick Snap Multizack Modular Segment Roller Brush

The Quick Snap Modular Segment Roller Brush is composed of a toothed core and high-quality brush filaments, designed for efficient installation and replacement. Its modular design minimizes downtime and maintenance costs, making it an ideal choice for continuous industrial cleaning and processing operations.

  • Bristle Material :

    Nylon/Polypropylene
  • Core Material :

    Polypropylene+30% Glass Fiber
  • Bristle Color :

    Blue/Red/White/Green/Black
  • Function :

    Cleaning/Washing/Polishing/Deburring
  • Feature :

    Mulitzack Core
Inquiry now

China Quick Snap Multizack Modular Segment Roller Brush Manufacturer

Introduction

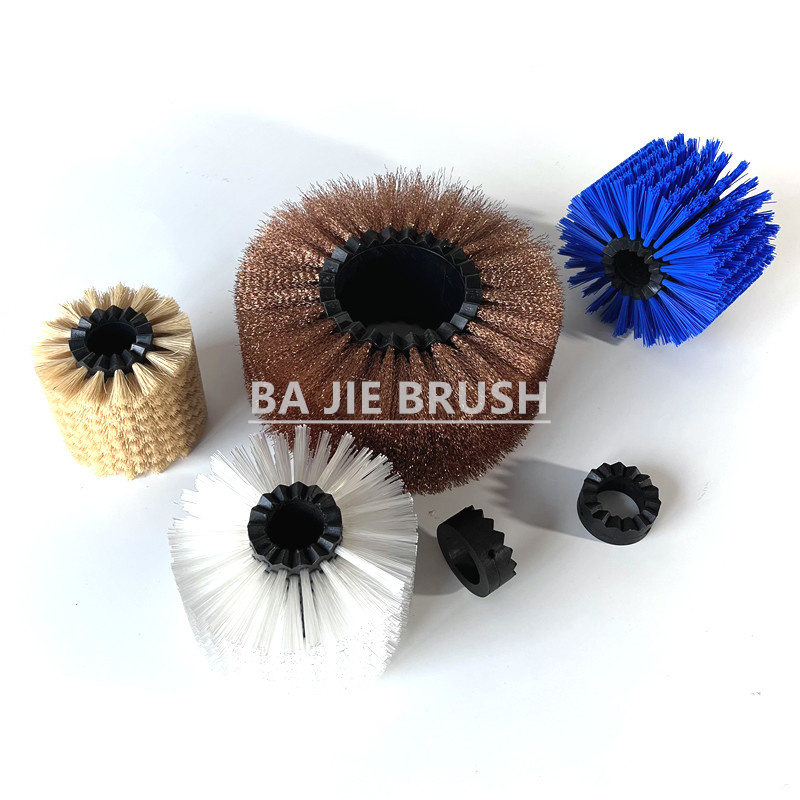

This brush is also known as a segment roller brush, modular segment brush, or modular roller brush. Engineered with a modular structure, this brush system provides a smart solution for situations where long roller brushes are required but easy and fast replacement of worn segments is essential.

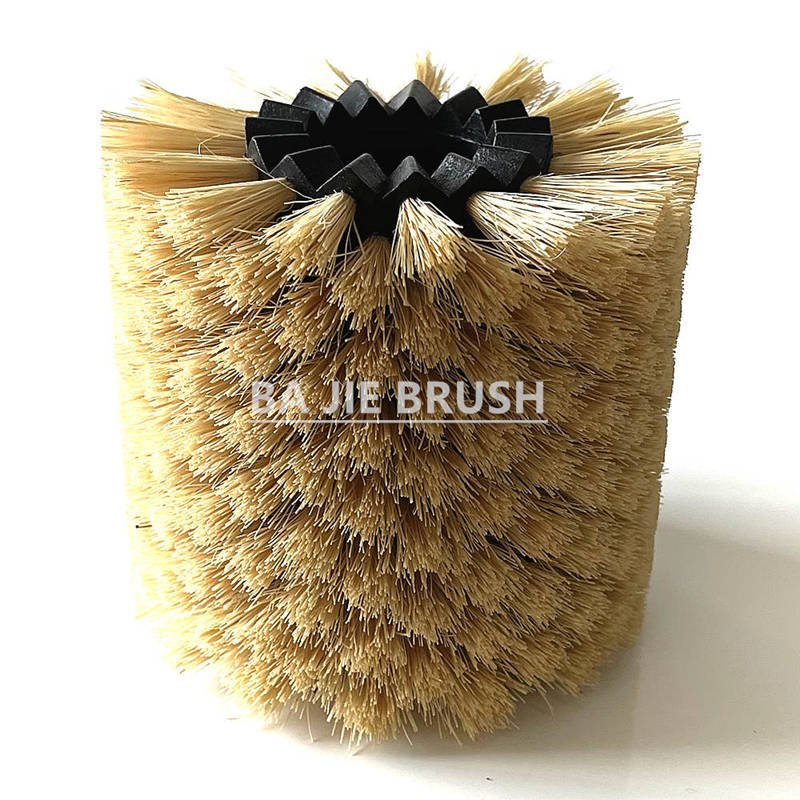

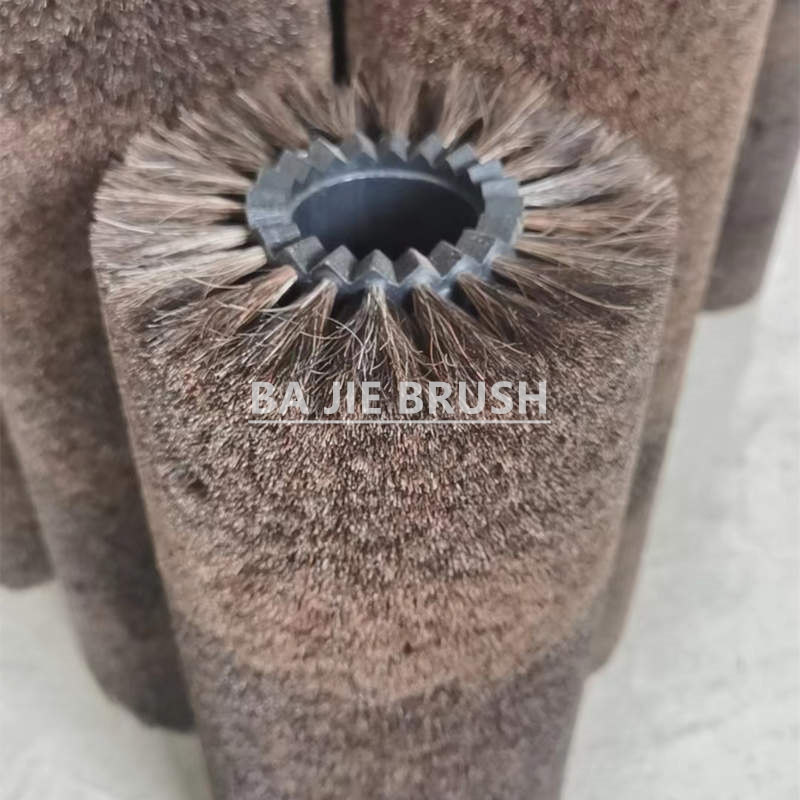

Each modular segment is made from reinforced polypropylene cores(PP mixed with 30% glass fiber). The fill materials can be customized to meet various working requirements, including synthetic monofilaments, steel wire, Tampico fiber, and animal hair.

The filling arrangement of the brush segments can be configured in multiple patterns such as full fill, field, spiral, or chevron. The fill density depends on the number of teeth per segment—available in low, medium, and high density options to accommodate different applications and material removal rates.

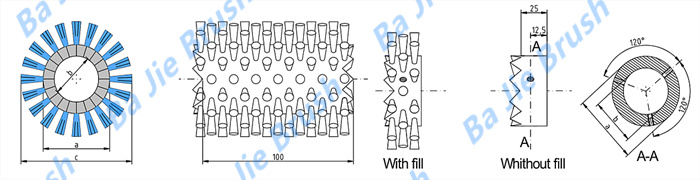

a(body diameter) b(bore diameter) Low Density(teeth) Medium Density(teeth) High Density(teeth)
30 20 6 8 10
45 25 8 12 16
57 35 10 15 18
65 40 12 17 20
86 60 12 20 30
100 75 14 18 22
125 100 18 24 28

Advantages of Modular Segment Roller Brush

  • Standard 100mm Segment Length

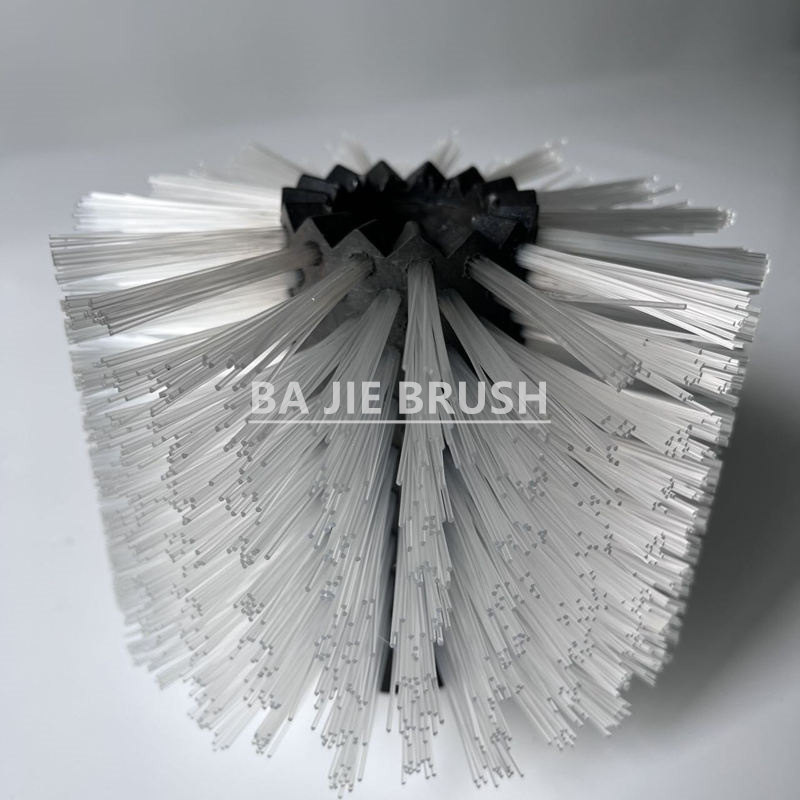

  • Toothed Core Design
    Provides a strong mechanical interlock between brush segments for stability and reliability during high-speed operation.
  • Quick Snap Replacement System
    Enables fast and easy replacement of worn sections without dismantling the entire brush.
  • Customizable Length
    Segments can be easily assembled to any required roller length.
  • Compact and Convenient Transport
    Modular structure allows cost-effective shipping and easy handling.

Application

The multizack modular segment roller brush is widely used in industries such as food processing, agriculture, wood treatment, metal finishing, and fruit or vegetable washing.

When installed on a shaft, multiple brush segments form a large roller brush cylinder. In case of wear, users can simply remove the damaged quick snap segment and replace it with a new one—saving both time and cost.

This modular brush system is ideal for washing, cleaning, polishing, peeling, de-dusting, deburring, and surface finishing tasks.

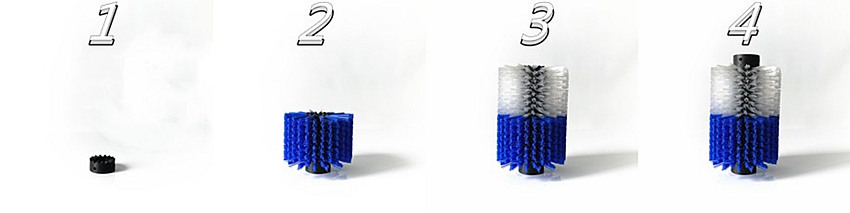

Toothed Segment Brush

Why Choose Ba Jie Brush

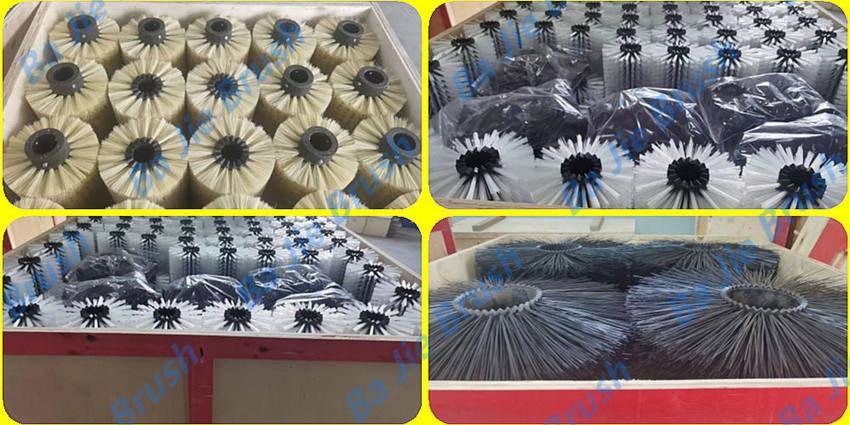

  • Secure Wooden Case Packaging
    All modular roller brushes are packed in strong wooden cases to ensure safe transportation and prevent damage during long-distance shipping.

  • Complete Size Range
    We provide a full selection of toothed core sizes to perfectly fit different roller brush systems and machinery requirements.

  • Factory-Direct Pricing
    As a professional brush manufacturer, we offer highly competitive prices without compromising on quality.

  • Custom Design Service
    Our engineering team can provide detailed drawings and tailor-made designs according to your specifications, ensuring a perfect match for your application.

Toothed Core Roller Brush
