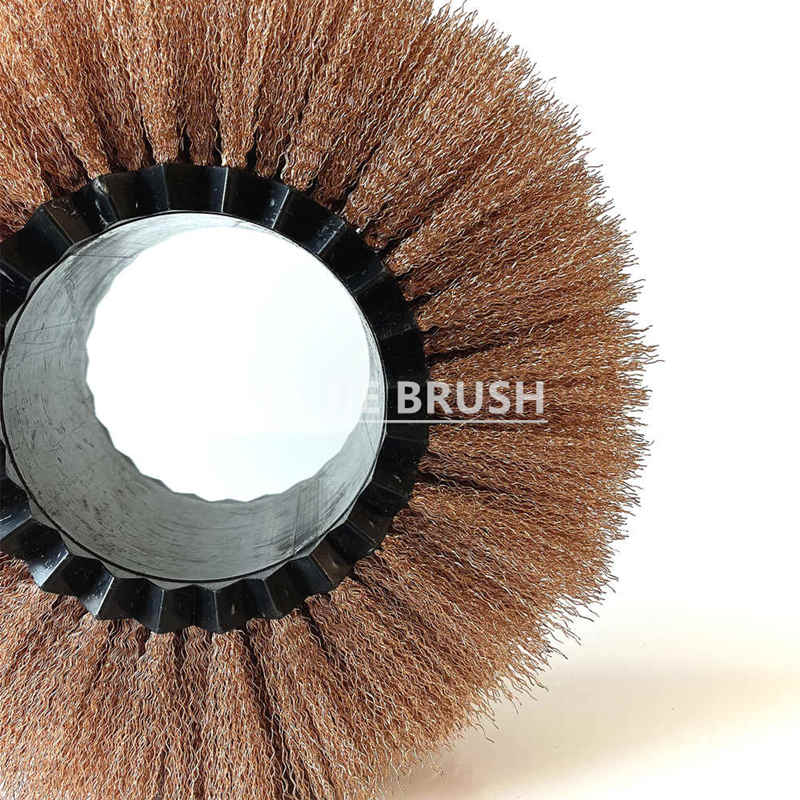

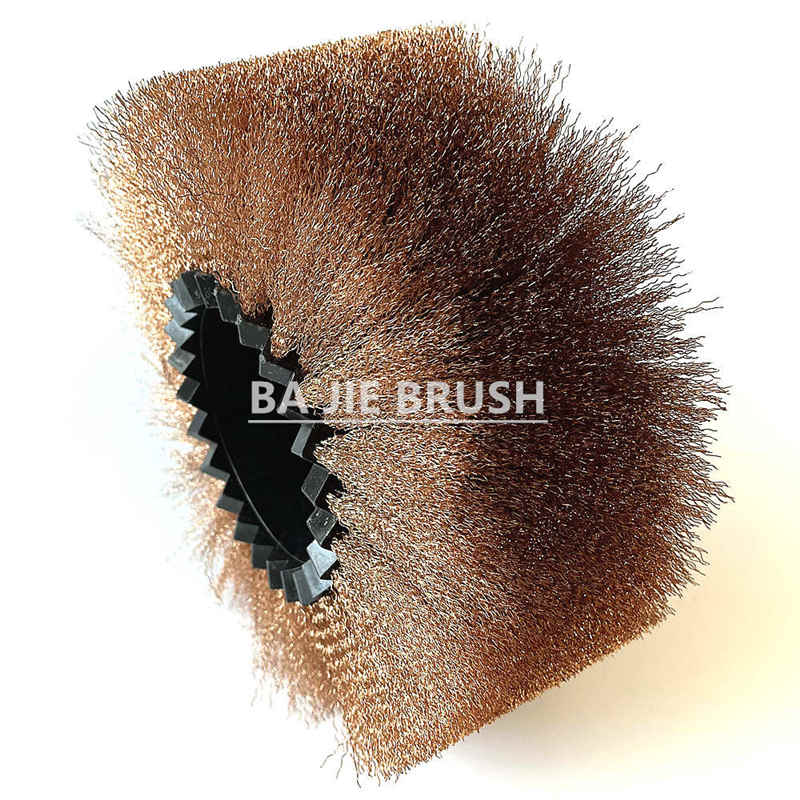

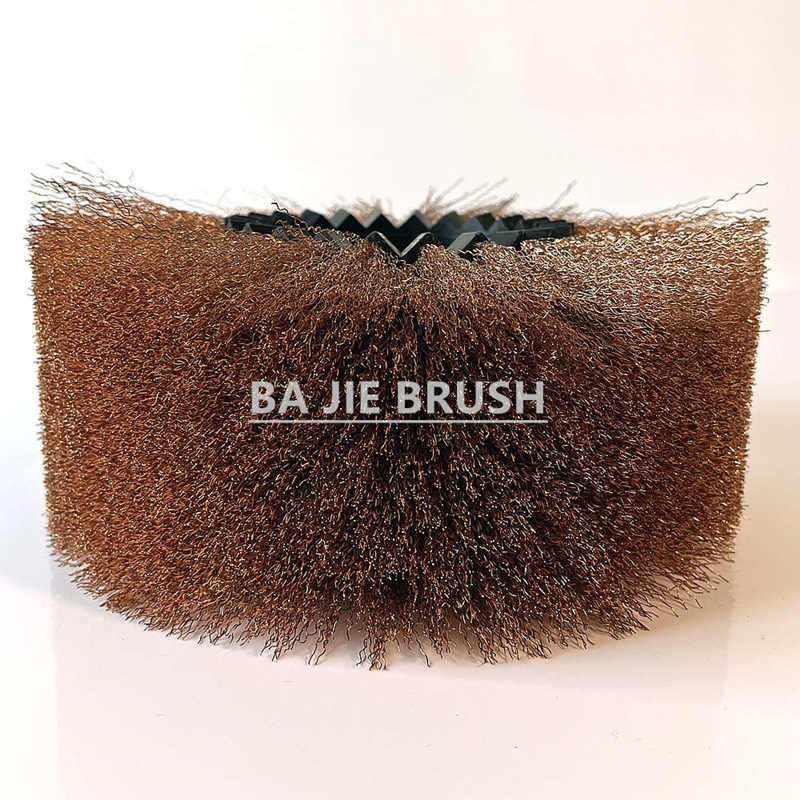

Phosphor Bronze Wire Segment Modular Roller Brush consists of phosphor bronze wire and toothed segment body. Several pieces are combined together to form a roller brush. Each segment roller brush is with two plastic end collars on two ends for locking.
Bristle Material :
Phosphor Bronze WireCore Material :
Polypropylene+30% Glass FiberBristle Color :
NaturalFunction :
Rust Removal/Polishing/DeburringFeature :
Wire Toothed Segment BrushChina Phosphor Bronze Wire Segment Modular Roller Brush Manufacturer
Introduction

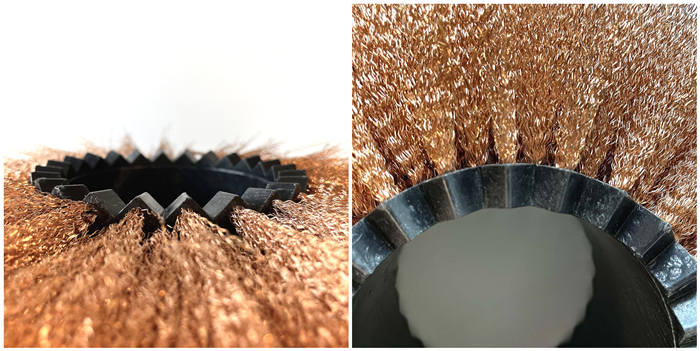

This modular roller brush is tufted with phosphor bronze wires. Normally, the filling pattern is full density to get better cleaning performance. Phosphor bronze wire we choose is new, and you can tell from its color. The body is PP mixed with 30% glass fiber. On two ends of the body, there are several teeth. Teeth amount is more, higher filling density we can get.

| a(body diameter) | b(bore diameter) | Low Density(teeth) | Medium Density(teeth) | High Density(teeth) |
| 30 | 20 | 6 | 8 | 10 |
| 45 | 25 | 8 | 12 | 16 |
| 57 | 35 | 10 | 15 | 18 |
| 65 | 40 | 12 | 17 | 20 |
| 86 | 60 | 12 | 20 | 30 |
| 100 | 75 | 14 | 18 | 22 |
| 125 | 100 | 18 | 24 | 28 |
Advantages of Modular Segment Roller Brush

Application
Phosphor Bronze Wire Segment Modular Roller Brush is widely used for industries which is with high temperature as phosphor bronze can withstand temperature ranging from -50°C (-58°F) to 200°C (392°F). It can be installed or disassembled quickly due to its segment design.
