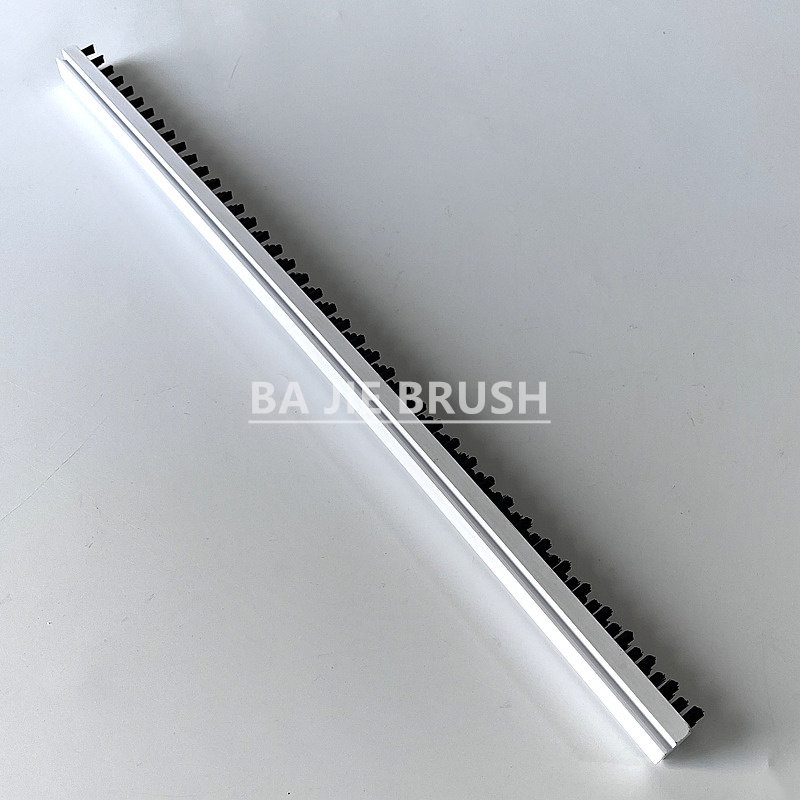

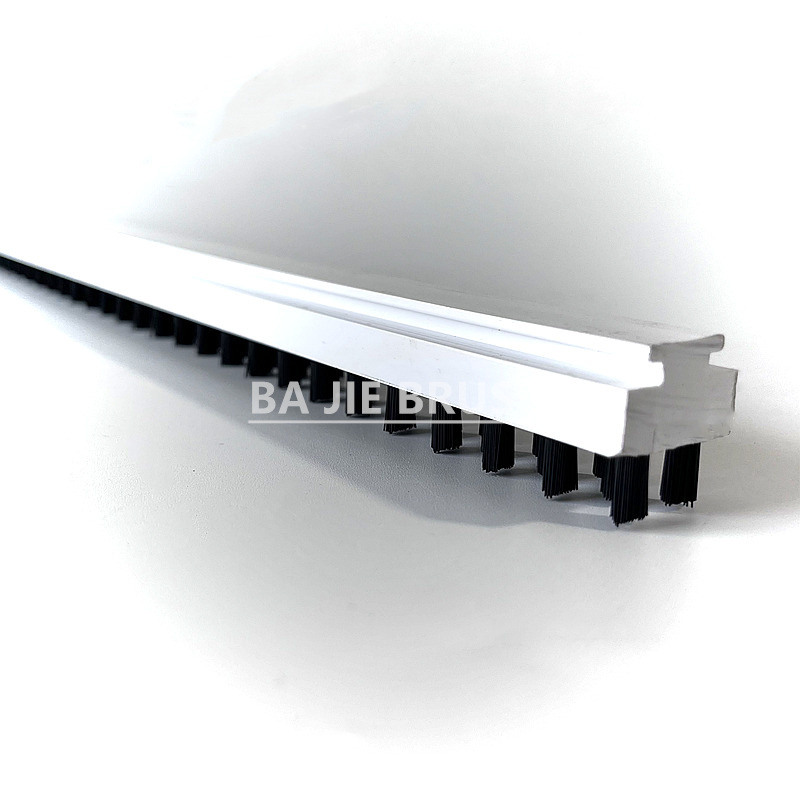

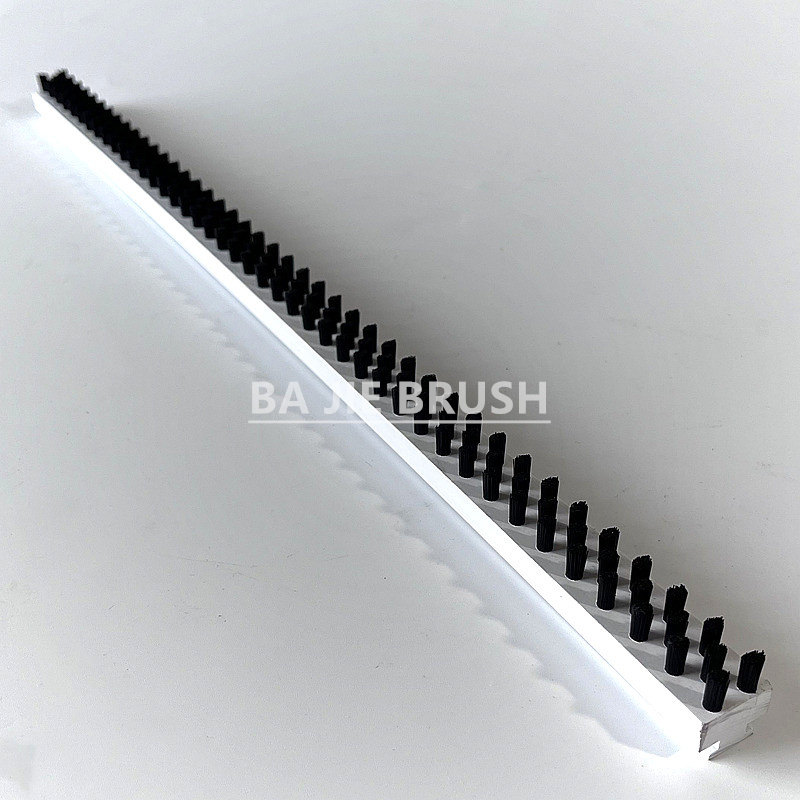

Interchangeable Plastic C Profile Lath Brush for Guidance

Interchangeable Plastic C Profile Lath Brush for Guidance

C profile lath brush is with special plastic base, which is fit in a C shape steel channel. Main feature for this brush is easily assembly and disassembly.

  • Bristle Material :

    PA6, 0.2mm, straight
  • Bristle Color :

    Black/Transparent/White/Blue/Green
  • Profile Material :

    PVC
  • Profile Shape :

    C Profile
  • Function :

    Guidance
  • Feature :

    Interchangeable Lath Brush
Inquiry now

China Interchangeable Plastic C Profile Lath Brush for Guidance Manufacturer

Introduction

C Profile Lath Brush is also known as C track Lath Brush, which is with special mounting system on the bottom, which material is moulded PVC plastic. There are 1, 2 or 3 rows with staggered fill pattern to your requirement. This lath brush can be tufted with any filament materials, such as synthetic fill, animal hair or Tampico fiber. Total length and fill height are very flexible, we can produce 300mm height filament and length up to 6 meters.

Filling Height(H) Length Core Row
5mm~300mm Up to 6 meters PVC 1/2/3



We have two different patterns to choose from:

  • Thin Pattern: Hole spacing is approximately 15 mm.
  • Thick Pattern: Hole spacing is approximately 12 mm.

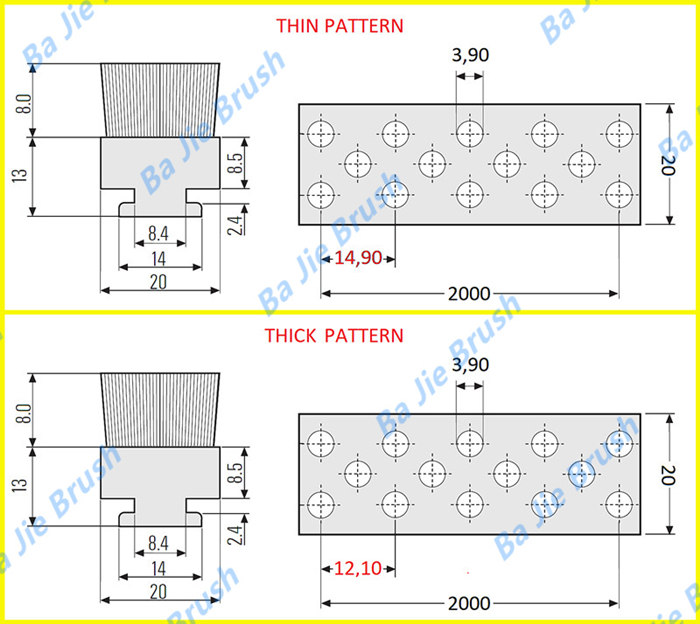

Lath Brush Drawing

Advantages & Features

  • Quick assembly and disassembly
  • Fast delivery. Ba Jie Brush keep this product in stock
  • Steel C profile is available here

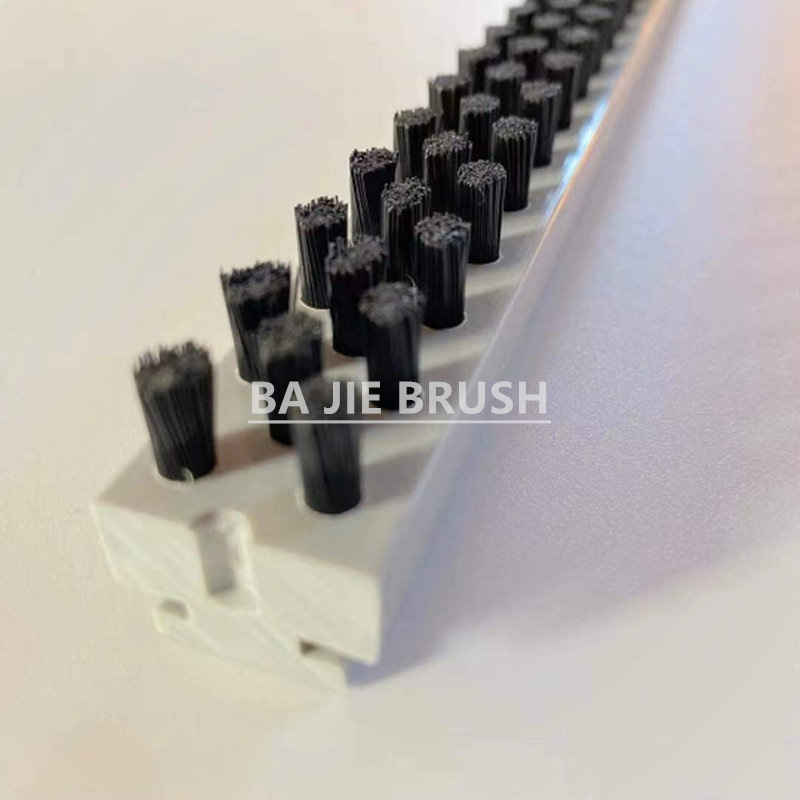

Black Lath Brush

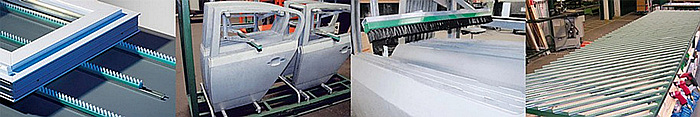

Application

Interchangeable C track lath brush is a smart solution for guidance on conveyor. You only need to slide the old lath brush from steel profile and slide in new lath brush. Main application is installing on working table surface for conveying and supporting fragile product such as doors, window and metal sheet. It can be also fitted production line for cleaning and washing purposes.

Packing & Shipping

We use wooden boxes for packaging. Each wooden box contains 100 lath brushes.

  • For a 2000 mm lath brush, the details of each wooden box are: 2050*300*360 mm, 100 kg.
  • For 100 pieces, the production time is 7 days.
