Rotary Heat Exchanger Flexible Seal Brush for Energy Recovery Wheels

Rotary Heat Exchanger Flexible Seal Brush for Energy Recovery Wheels

Rotary heat exchanger brush is made by yarn and PVC bottom, and the main application is installing on Thermal Wheel for sealing purpose.

  • Bristle Material :

    BCF Yarn/PP
  • Bristle Color :

    Grey/Brown
  • Profile Material :

    Flexible PVC
  • Profile Shape :

    Moulded H Profile
  • Function :

    Sealing on Energy Recovery Wheel
  • Feature :

    Preventing Air Leakage
Inquiry now

China Rotary Heat Exchanger Flexible Seal Brush for Energy Recovery Wheels Manufacturer

Introduction

This Rotary Heat Exchanger Seal Brush—also known as a Thermal Wheel Seal Brush or Energy Recovery Wheel Seal Brush—is for sealing around the circumference of rotary heat exchangers. It can minimize air leakage between the rotor and housing, thereby improving thermal efficiency and overall energy recovery performance.

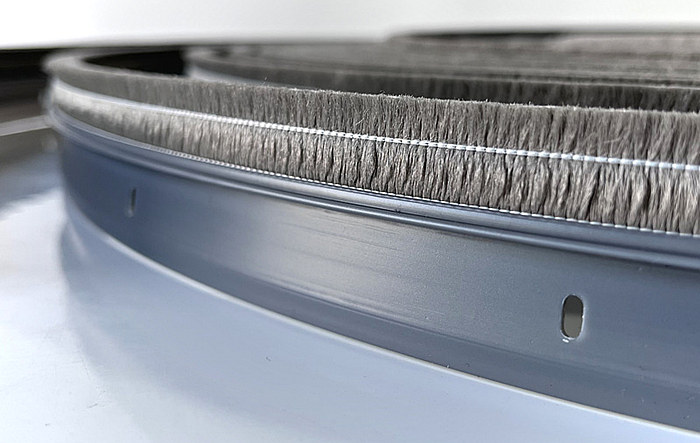

Rotary Heat Exchanger Strip Brush

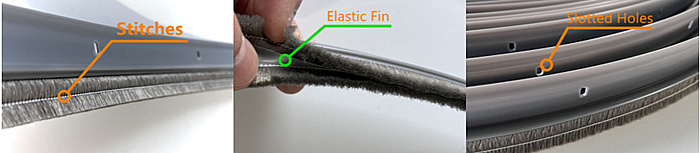

The seal brush is composed of two main components:

  • Flexible PVC Profile
    It features pre-slotted mounting holes for quick adjustment.
  • High-Density Yarn with Elastic Fin
    The yarn is stitched along its length and divided by a transparent elastic fin in the center.

The yarn material is available in silicone-treated polyester for water resistance, and includes 2% UV protection, making it suitable for long-term use in HVAC systems.

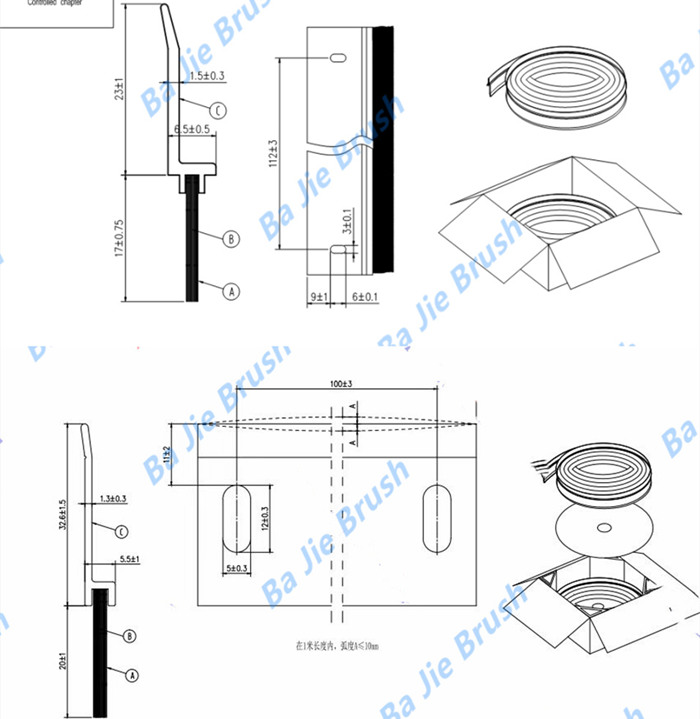

Heat Exchanger Seal Brush Drawing

Key Advantages

  • Enhanced Sealing Performance
    The integrated elastic fin improves sealing against air leakage.
  • Flexible & Easy to Mount
    Pre-slotted mounting holes on the PVC profile allow for precise and adjustable installation on circular housings.
  • Water-Resistant Silicone Yarn
    The yarn is treated for moisture resistance, ensuring stable performance in humid conditions.
  • UV Protection
    The material contains 2% UV stabilizer to resist degradation in light-exposed environments.
  • Customizable Stitching
    Yarn stitching can be adjusted or removed upon request, depending on application needs.
  • Customizable Seal Range
    Normally between 11mm to 23mm, making it suitable for various equipment models.

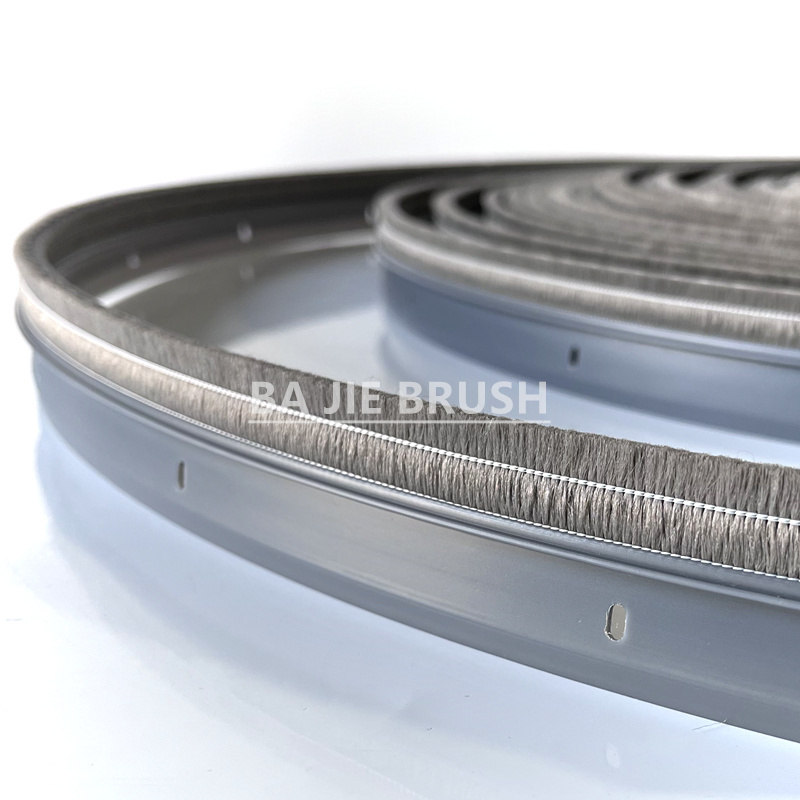

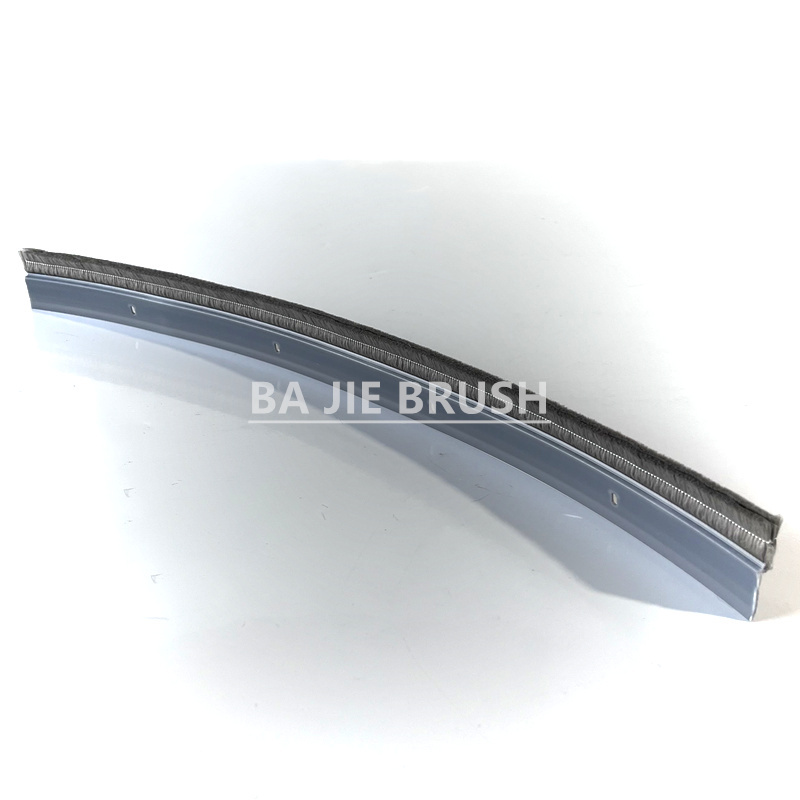

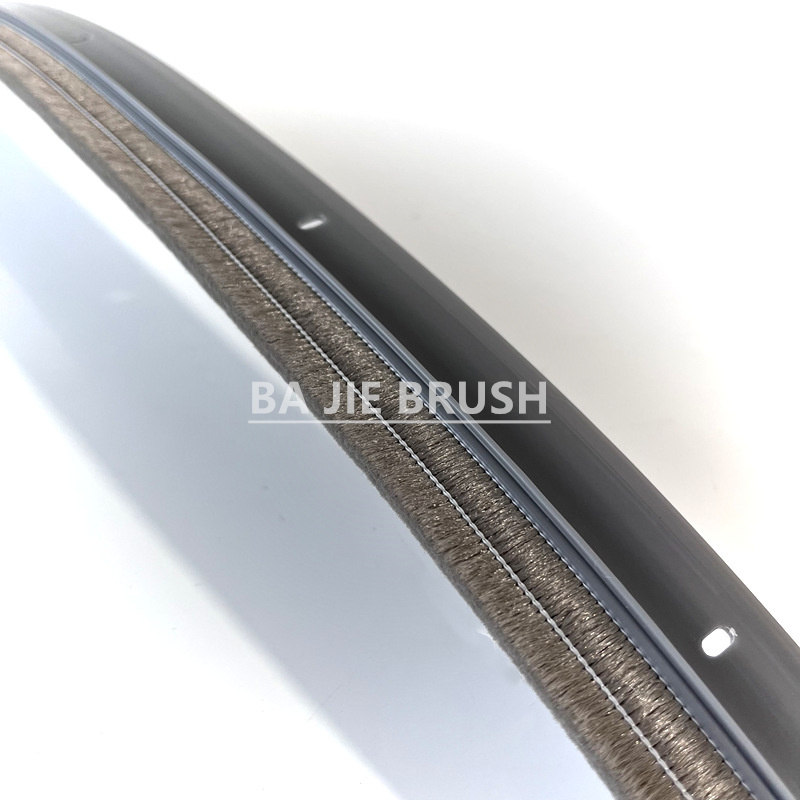

Enthalpy Wheel Seal Brush

Application

This Rotary Heat Exchanger Flexible Seal Brush is commonly used in:

  • Energy Recovery Ventilators (ERVs)
  • HVAC Rotary Heat Exchangers
  • Thermal Wheels or Regenerative Heat Exchangers

It can fit many well-known heat exchanger brands, including:

  • HeatEx
  • Holtop
  • Ostberg
  • Klingenburg
  • Hoval
  • Recuperator

Besides HVAC systems, this Rotary Heat Exchanger Brush can also be adapted for sealing applications in industrial doors, window systems, and rotating equipment enclosures.

? Installation Tip:

To extend the product’s service life and prevent yarn from unraveling, we recommend lightly burning both ends of the yarn with a lighter at the start and end of installation. This helps fuse the fibers and keeps the brush structure intact over time.

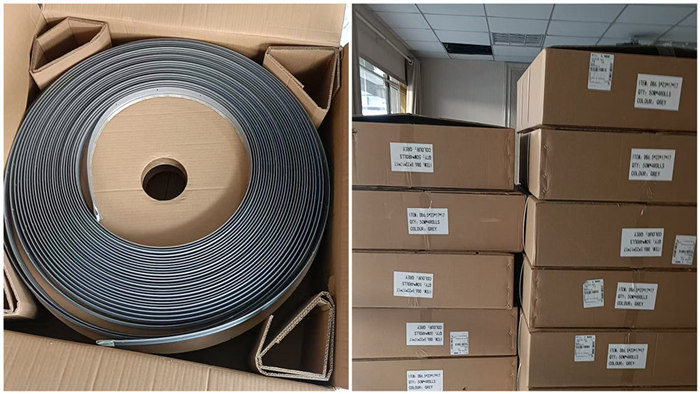

Packing & Shipping

Due to its lightweight and flexible structure, the Energy Recovery Wheel Seal Brush is supplied in roll form for easy handling and storage:

  • 50 meters per roll
  • 4 rolls per carton
  • Carton dimensions: 78cm × 78cm × 20cm
  • Standard lead time: Approx. 15 days for 3000 meters

Each roll is carefully packaged to prevent deformation, moisture exposure, or dust contamination during transit and storage.

Heat Exchanger Brush Package

Why Choose Ba Jie Brush

  • ? 28 Years of Experience in custom brush manufacturing
  • ? In-house production and quality control
  • ⚙️ Flexible OEM/ODM Support
  • ⏱️ Fast Lead Times
  • ? Reliable Packaging & Global Shipping Partners
