Home Products Strip Brushes

H And F Profile Flexible TPE/TPV Back Nylon Bristle Strip Brush

H And F Profile Flexible TPE/TPV Back Nylon Bristle Strip Brush

H And F Profile Flexible TPE/TPV Back Nylon Bristle Strip Brush is a highly customized industrial brush for sealing applications

  • Bristle Material :

    Nylon/Polypropylene/PBT/Animal Hair/Tampico
  • Bristle Color :

    Black/White/Red/Green/Blue
  • Profile Material :

    Rubber
  • Profile Shape :

    H and F Profile
  • Function :

    Sealing for Agricultural Machinery
  • Feature :

    Flexible Back
Inquiry now

China H And F Profile Flexible TPE/TPV Back Nylon Bristle Strip Brush Manufacturer

Introduction

In the realm of agricultural production, the utilization of automated farming equipment is steadily increasing. The TPV/TPE flexible bristle strip brush with H and F profile is widely used in agricultural machinery for sealing and splash stop purpose.

This product consists of two main elements: the TPV/TPE base and the nylon bristles.

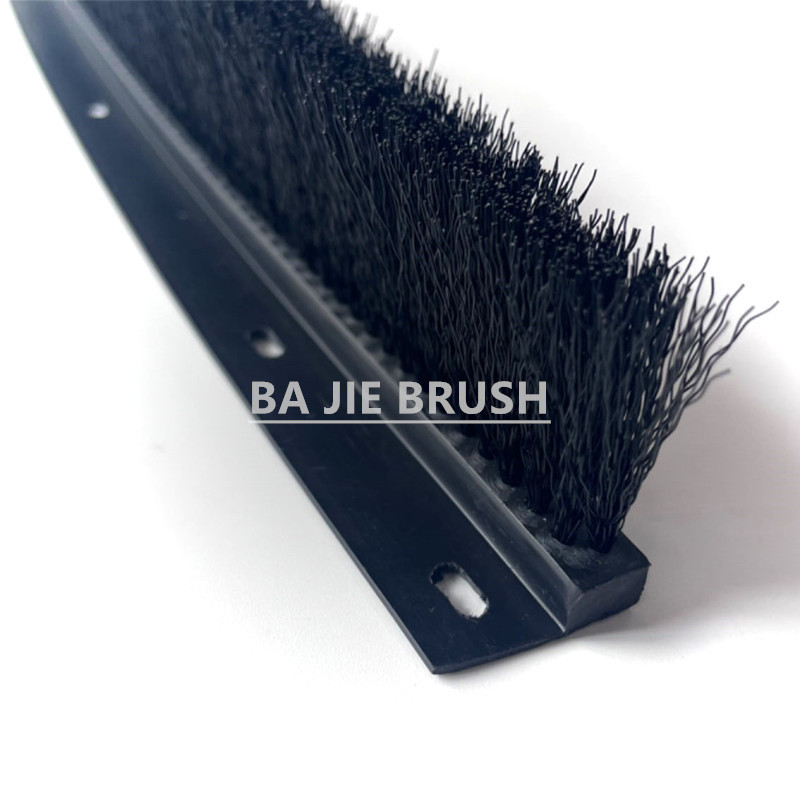

High Density Seal Brush

TPV/TPE Base

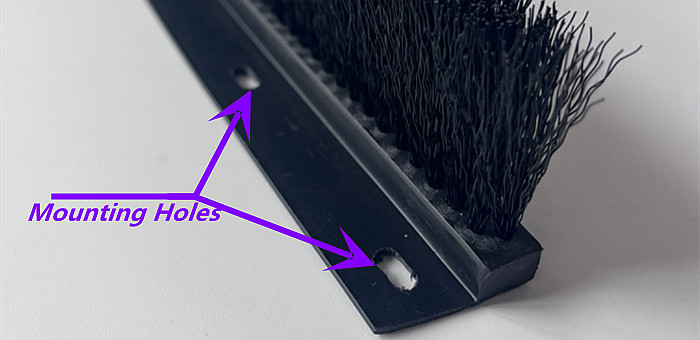

The base can be tailored into various shapes, including 90-degree(F profile) and 180-degree(H profile), and comes equipped with mounting holes to accommodate different mounting systems. The base is made from thermoplastic rubber, with SARLINK 4190 being a commonly employed brand in our factory. The use of this material in the agricultural domain is advantageous for several reasons:

  • Wide temperature range compatibility
  • Excellent resistance against bending fatigue
  • High resistance to oil and chemicals

Flexible Rubber Seal Brush

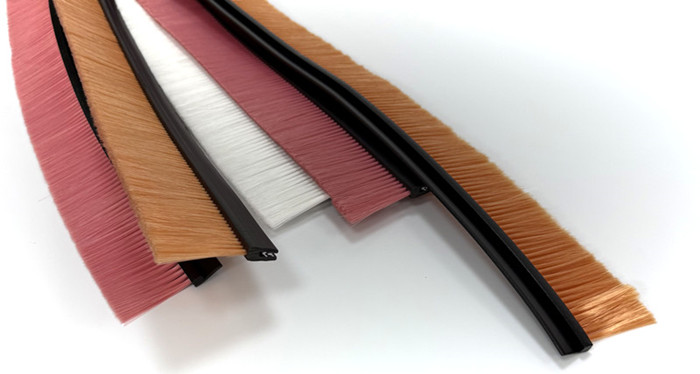

Nylon Bristles

In the realm of agricultural machinery, we typically employ corrugated nylon bristles with diameters ranging from 0.28mm to 0.34mm. Compared to straight bristles, corrugated bristles provide superior obstruction and sealing characteristics. Typically, each flexible brush incorporates dual rows of bristles to enhance bristle density.

Application

The primary function of flexible back bristle strip is to effectively prevent debris from passing through, making it ideal for tasks such as spray suppression. Additionally, this brush finds utility in other agricultural applications, including:

  • Crop residue removal
  • Seed cleaning and sorting
  • Surface cleaning of agricultural equipment
  • Dust and dirt removal from harvesting machinery

TPE Rubber Brush Seal

Enhance your agricultural equipment's performance and efficiency with the TPV/TPE flexible bristle strip brush, designed to meet the demands of modern automated farming practices.
