Home Products Industrial Brushes

Electric Welded Module Spiral Coil Roller Brushes

Electric Welded Module Spiral Coil Roller Brushes

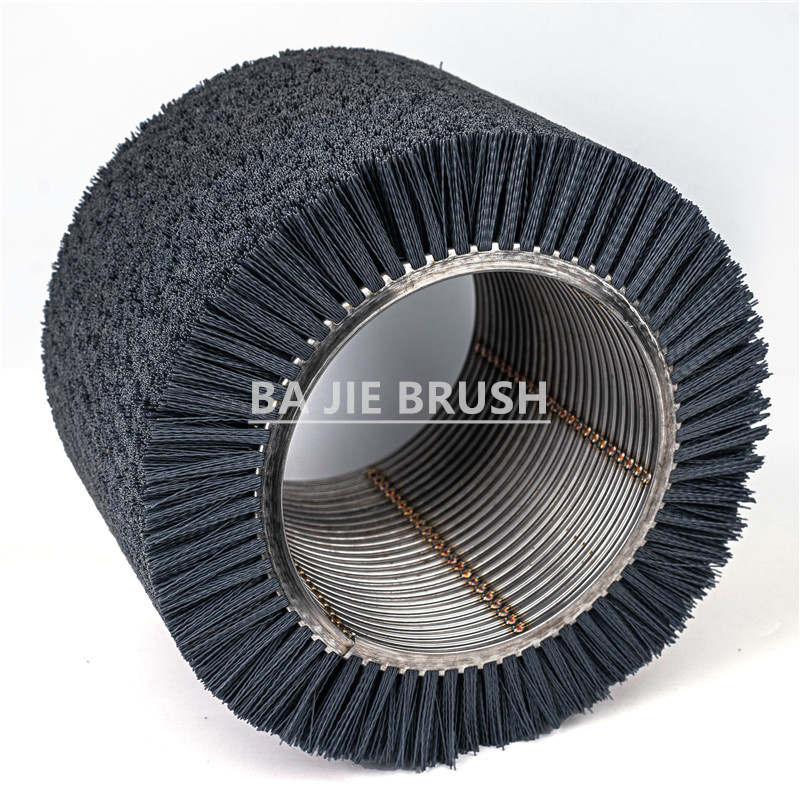

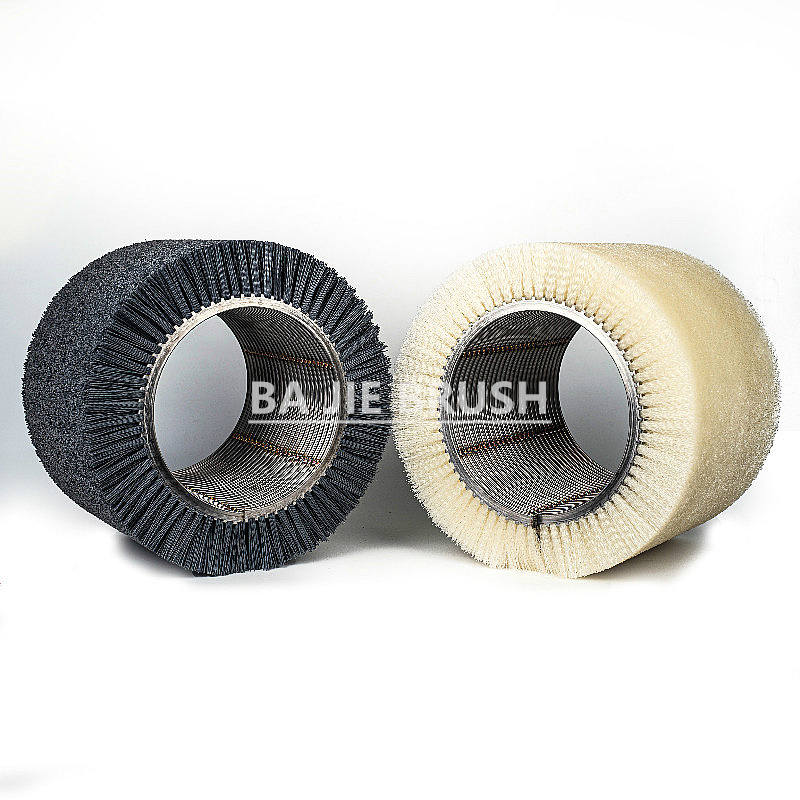

Electric welded module spiral coil roller brushes are made from double band spiral brush. Compared with other roller brushes, it is the highest fill density.

  • Bristle Material :

    Abrasive Nylon/PA612
  • Bristle Color :

    Grey/White
  • Backing Material :

    Double Band Stainless Steel
  • Function :

    For Rolling Mills
  • Feature :

    Double Band Spiral Roller Brush
Inquiry now

China Electric Welded Module Spiral Coil Roller Brushes Manufacturer

Introduction

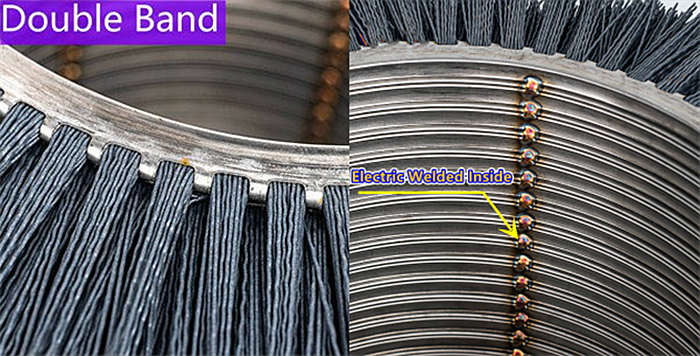

This brush is made of double band strip brush winding in spiral shape with closed wound. Inside of this brush, there are generally 6 electric welded lines for combining coils tightly.

This spiral coil roller brush consists of several weld modular spiral brushes, then assembly them together to become a big roller. It can be directly installed on steel tube or shaft. Bajie Brush also offer welded spiral roller brush with adaptor.

Brush for Rolling Mills

Advantages

  • Very high fill density. No gaps between spirals.
  • Heavy duty application
  • Easy for transportation. Several module separately.
  • Dynamic Balancing for high rotating speed

Applications

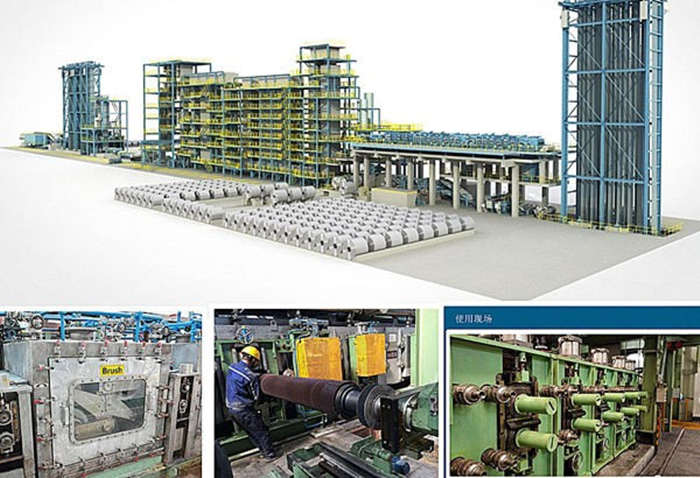

Electric Welded Module Spiral Coil Roller Brushes is widely used on rolling mills, and it's suitable for many metal sheet processing line such as Continuous Annealing Line, Continuous Galvanizing Line, Copper Cleaning Line, Aluminum Cleaning Line, Bright Annealing Line, Temper Mill Line, Skinpass Mill Line.

Why Choose Us

  • High quality abrasive filament from Hahl, Dupont, Hotani...
  • Fast delivery
  • Custom made parameters to your application
  • ISO9001:2015 quality management
  • Individual wooden case
