Home Products Strip Brushes

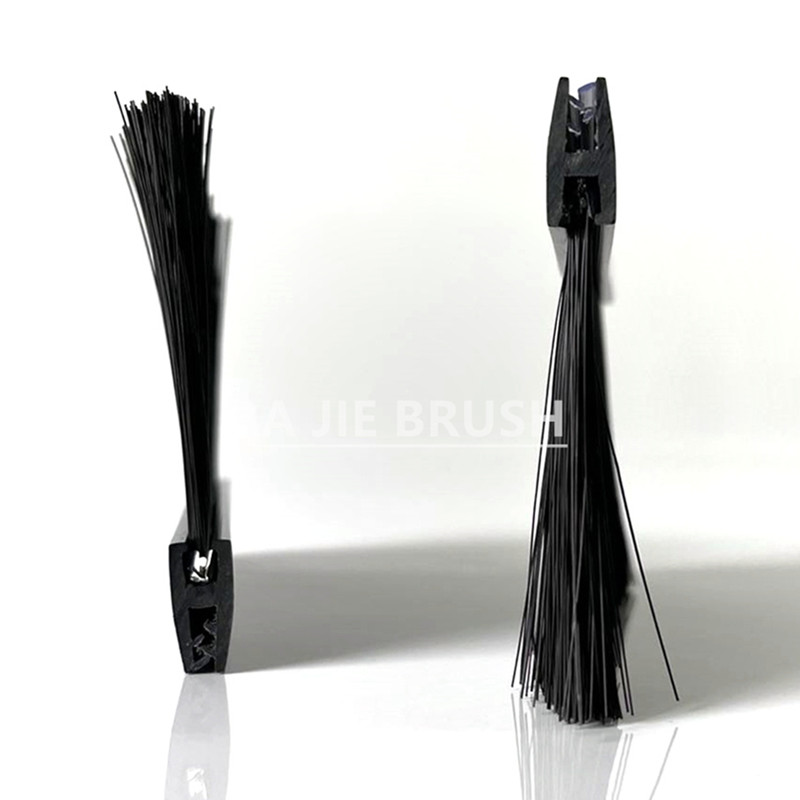

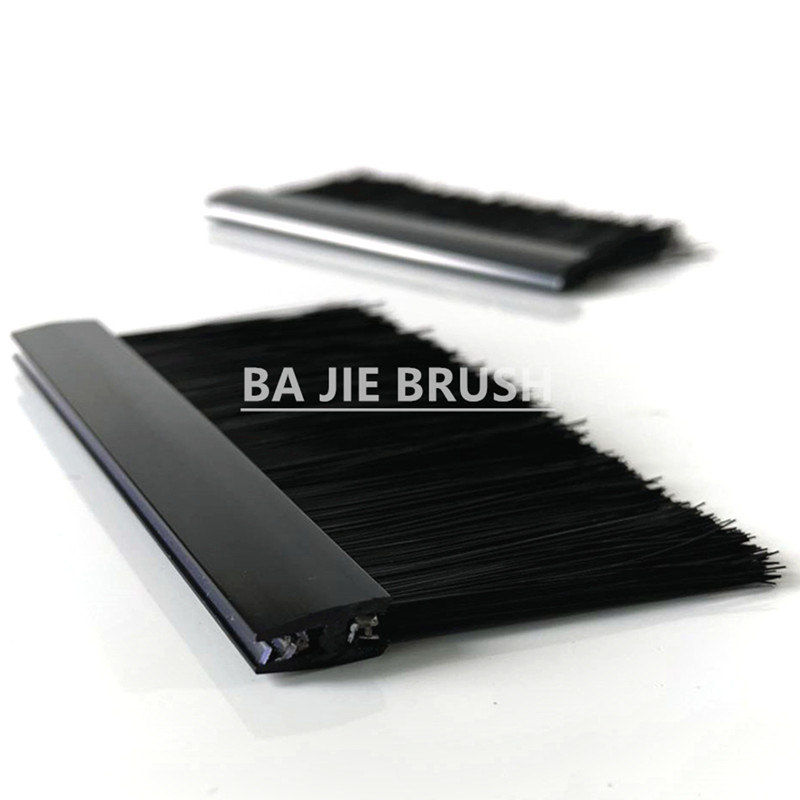

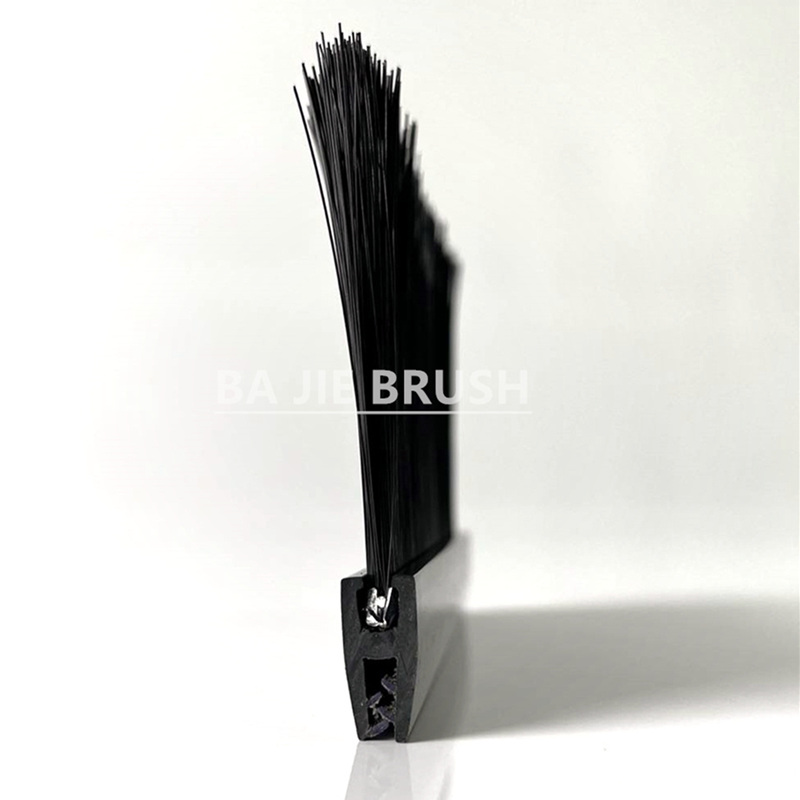

Rigid Plastic Profile Interlocking Strip Brushes For Cable Passage

Rigid Plastic Profile Interlocking Strip Brushes For Cable Passage

This brush consists of hard plastic clip style profile and metal backing brush strip. It is installed on data center for sealing.

  • Bristle Material :

    Nylon/Polypropylene
  • Bristle Color :

    Black/White/Green/Red
  • Profile Material :

    Rigid PVC
  • Profile Shape :

    Clip-on Profile
  • Function :

    Sever Rack Cabinet Sealing
  • Feature :

    High Density Cable Passage Brush Strip
Inquiry now

China Rigid Plastic Profile Interlocking Strip Brushes For Cable Passage Manufacturer

Introduction

This brush is made for sealing cable entry in server rack cabinets and electrical enclosures. It is made of a rigid clip-on plastic profile combined with a metal channel strip brush. Thanks to the slot design at the bottom of the rigid profile, the brush can be securely interlocked onto metal sheets of different thicknesses without screws or glue.

This cable pass through brush strip allows cables to pass through easily while sealing the opening at the same time, helping block dust, cold air, hot air, and pests. As a result, it helps keep server racks clean, improves airflow management, and extends the service life of servers and network equipment.

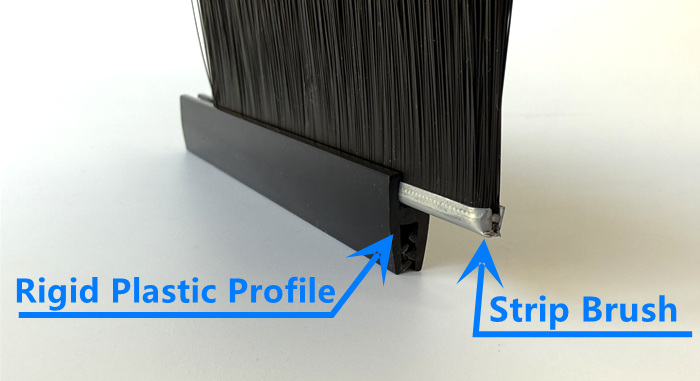

Cable Entry Seal Brush

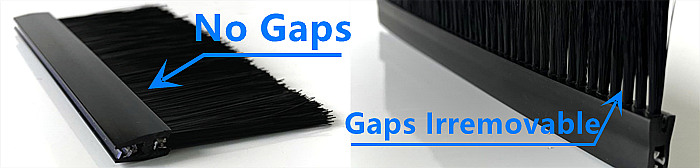

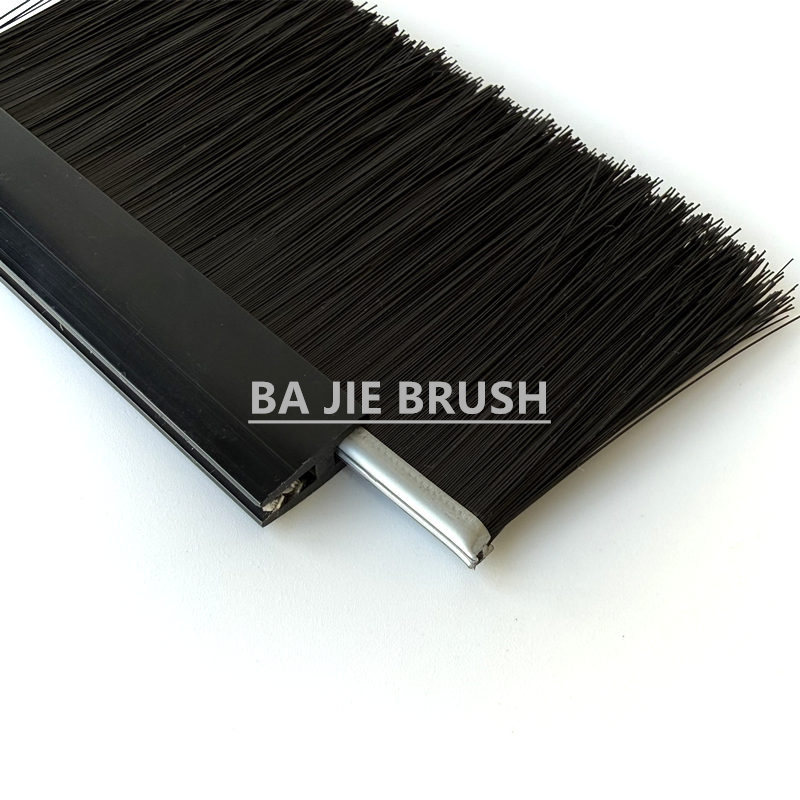

Difference Between Rigid Clip-On Profile Strip Brush and Flexible Clip-On Strip Brush

Compared with a flexible clip-on profile strip brush, the biggest advantage of this rigid version is its much higher bristle density. Flexible clip-on brushes are usually made using a staple-set process, which means there are small gaps between bristle holes at the base. These gaps make it difficult to achieve a fully sealed cable entry.

In contrast, the rigid clip-on profile strip brush uses a metal channel strip brush structure. All bristles are tightly compressed and locked inside a U-shaped metal channel, leaving no gaps at all. This construction allows the brush to achieve nearly 100% sealing performance, making it ideal for data centers and server cabinets where airflow control is critical.



Another advantage of the rigid version is lower cost compared to flexible clip-on brushes. However, flexible clip-on brushes still have their own strength, as they can be installed on irregular or uneven surfaces, while rigid profiles are best suited for flat metal panels.

Why Choose Ba Jie Brush

  1. The bristles we use are flame-retardant, making this interlocking brush for cable passage especially suitable for server rooms and data center cabinets where fire safety standards are high.
  2. The rigid plastic profile has high hardness and structural stability, so once installed, the brush will not shift or deform over time.
  3. We are the original manufacturer of this product. Factory-direct supply allows us to offer competitive pricing while maintaining consistent quality.
  4. We follow a strict quality control system in accordance with ISO 9001 standards, ensuring every cable pass through brush strip meets industrial and commercial requirements before delivery.

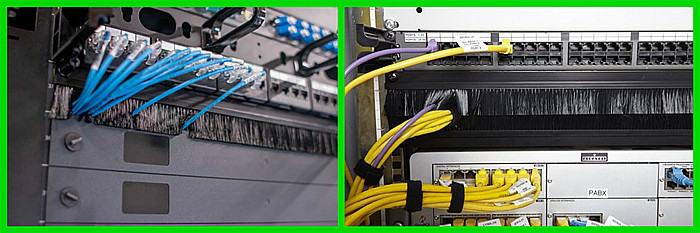

Cable Management Seal Brush

FAQ

  1. Are you a factory or a trading company?
    We are a manufacturer of this insert strip brush.
  2. What is the minimum order quantity (MOQ) for this product?
    The minimum order quantity is 100 pieces.
  3. What is the typical production lead time?
    The normal production time is 7–15 days.
  4. What is this product mainly used for?
    This strip brush is primarily installed on data center server racks or cabinets. It is used for cable passage, while also providing effective sealing against dust and airflow leakage.
  5. How is this product installed?
    The brush features a slotted rigid plastic profile at the bottom, which allows it to be directly clipped into the metal sheet of the server rack cabinet without complex tools.
  6. What is your main advantage compared with other manufacturers?
    Our main advantage is competitive pricing, made possible by direct factory production and efficient manufacturing processes.
