CNC Turret Table Top Brush Panel

CNC Turret Table Top Brush Panel

CNC turret table top brush panel is mounted on fixed parts of machine for supporting and conveying product to avoid scratching.

  • Bristle Material :

    Nylon
  • Core Material :

    PVC/Nylon/Polypropylene/ABS
  • Bristle Color :

    Black
  • Function :

    Supporting
  • Feature :

    Table Top Brush
Inquiry now

China CNC Turret Table Top Brush Panel Manufacturer

Introduction

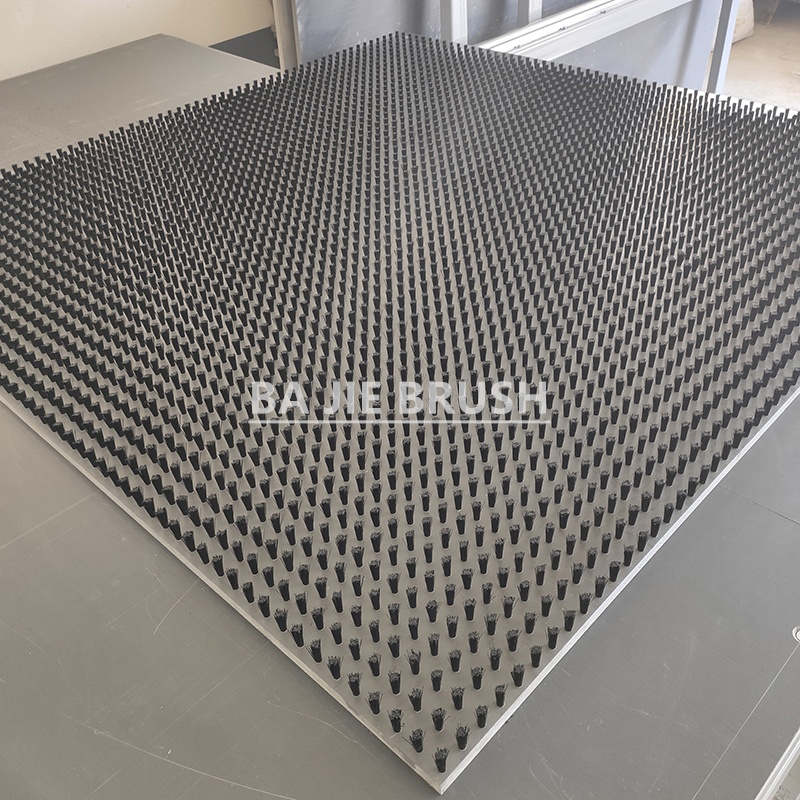

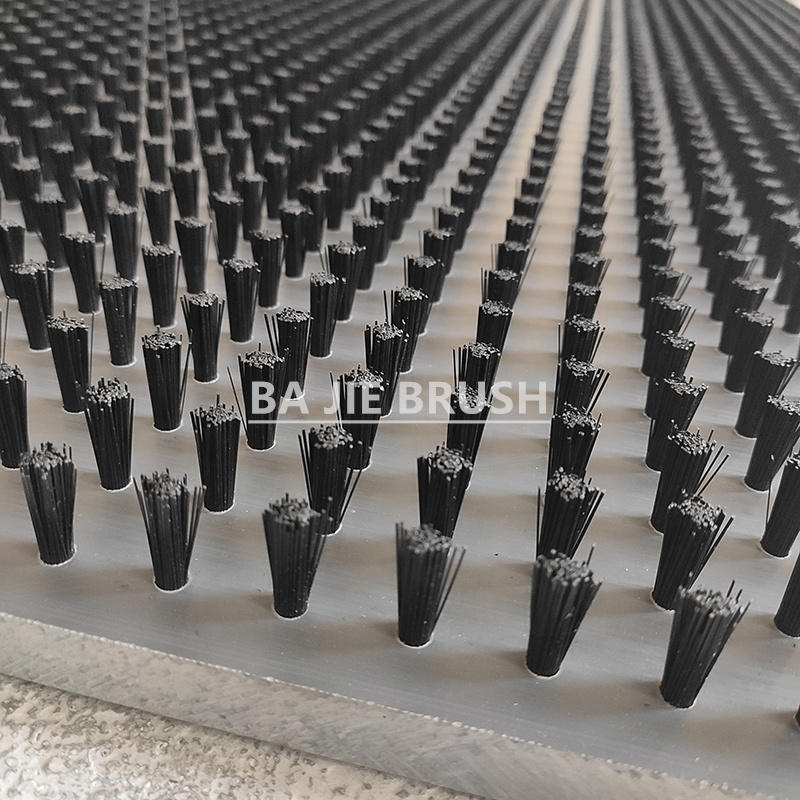

A CNC Turret Table Top Brush Panel, also known as a Brush Table, Brush Panel, or Staple Set Brush Table, is made by fixing dense staple-set brush tufts onto a flat plate. The plate can be manufactured from wood, plastic, or steel, and we offer a wide range of filament options to match different applications. For large machines or custom setups, we can produce panels up to 1200mm x 2500mm, and we can also shape the brush table to fit irregular table designs.

Because the brush surface distributes weight evenly and prevents direct contact with metal or glass, it is an ideal solution for supporting, conveying, and protecting materials during machining or fabrication. Whether you need a Table Top Brush Panel, Turret Brush Panel, or Flat Punched Brush, we can customize the size, thickness, tuft density, and filament angle to suit your equipment.

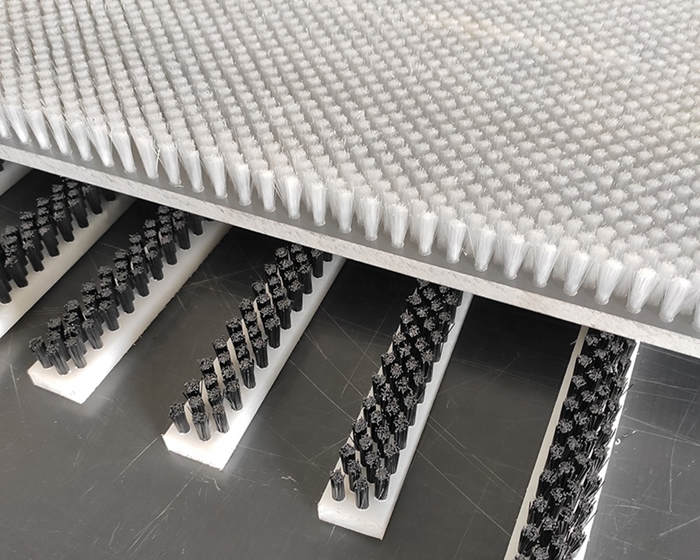

Turret Brush

Key Features

  • Provides stable support without scratching sensitive surfaces
  • Carries heavy loads up to 2000 kg/m²
  • Available in custom shapes to match non-standard table layouts
  • Angled filament filling available for special conveying or polishing needs
  • Wide range of filament materials available

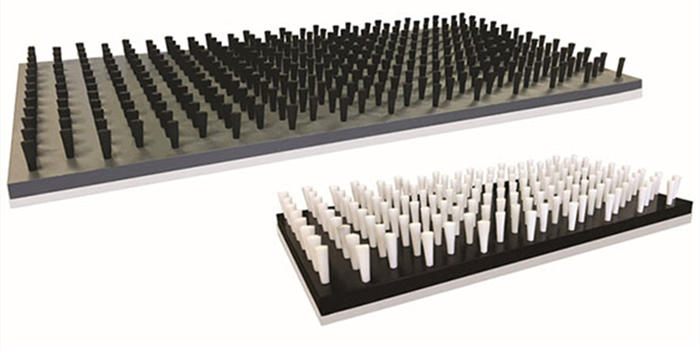

Tufted Panel Brush

Application

The CNC Turret Table Top Brush Panel is commonly used in many industries to prevent surface damage and improve handling efficiency, including:

  • Sheet metal fabrication
  • Glass panel conveying
  • Wood finishing lines
  • CNC turret press machines
  • Metal handling and transfer tables

Sheet Metal Processing Panel Brush

FAQ

  1. Why is nylon used as the bristle material for the brush table?
    A: Nylon bristles offer an excellent balance of resilience, softness, and durability compared with other bristle materials. This combination allows the brush table to support workpieces without scratching their surfaces, while also ensuring a long service life under continuous CNC operation.
  2. Can the size of the brush panel be customized?
    A: Yes. The size is fully customizable. The maximum panel size is 1200 × 2500 mm, and any smaller dimensions can be produced according to your CNC turret table requirements.
  3. How is this product packaged?
    A: We use strong wooden crate packaging. Although nylon bristles are flexible and can naturally recover after being bent, they may deform during long-distance transportation. To ensure the brush panel can be installed and used immediately upon arrival, we use reinforced wooden packaging for maximum protection.
  4. How can the load-bearing capacity of the brush table be increased?
    A: The only effective way to increase load capacity is to increase bristle density. We achieve this in two ways: Increasing the diameter of the bristle holes and reducing the spacing between adjacent bristle holes
    Both methods significantly enhance the overall support strength of the brush table.
  5. What is the typical production lead time?
    A: The standard production time is 7–15 days.
  6. What is your biggest advantage compared with other manufacturers?
    A: Our biggest advantage is competitive pricing.
  7.  How is the CNC Turret Table Top Brush Panel installed?
    A: We pre-drill approximately four mounting holes in the PVC plastic panel. The brush panel can be easily fixed onto the CNC turret table using screws through these holes, forming a complete brush table system.
  8. What is your after-sales policy?
    A: We guarantee reliable after-sales support. For any defective products or items that do not match the approved drawings, we provide free replacement or a full refund, ensuring zero risk for our customers.
